Build it right the first time—with GRIDFLEX®


Overview

Built for the demands of modern flat-roof projects, GRIDFLEX® 5D and GRIDFLEX® 10D combine structural integrity, installation speed, and long-term reliability—changing how the solar landscape is shaped, one roof at a time. Engineered to minimize ballast and attachments without compromising performance, GRIDFLEX® delivers streamlined installs, lower labor costs, and simplified maintenance access. Backed by a system-first design approach, everything solar pros need to build it right the first time.


Installs on
Ballasted
Gravel
Membrane
Mineral Cap Tar

Key Features & Benefits

Minimize Ballast & Attachments

New ballast rail profile improves the installation experience and ensures consistency across the entire array while reducing labor and material costs.

Precision Installation Tools

Rail-stamped measurement guides and labeled connections ensure fast, accurate setups.

Maximize Roof Utilization

Row spacing flexibility for maximum module density.

Flexible Row Spacing Options

GRIDFLEX® 5D – 7″ or 11″
GRIDFLEX® 10D – 10″, 13″, or 17″

Integrated Wire Management

Tool-less components reduce clutter and streamline electrical BOS.

“Pop-the-Hood” Maintenance Access

One-step swing-up design enables easy access to individual modules—no part removal required.

Secure, Long-Lasting Connections

Torqueable, checkable clamps ensure system integrity and long-term performance.

Wind-Optimized Design

Wind-optimized layout resists uplifting and stabilizes arrays in high-wind environments. Wind tunnel tested and validated.

Green Zone Mounting

Promotes even load-sharing across modules, protecting your system investment.

Patented

This product is protected by one or more U.S. Patents. Visit our patent page in the footer to learn more.

Banner-Domestic-content-manufcturing-NXT-products

GRIDFLEX® is designed to meet domestic content safe harbor guidance requirements.

Unirac’s GRIDFLEX® racking systems are domestically produced and have all the key features that customers value. GRIDFLEX® 5D and GRIDFLEX® 10D may provide taxpayers with an option to claim the 10% Domestic Content Bonus Credit (DCBC)*!

Under the IRS’s First Updated Safe Harbor Guidance (Notice 2025-08), the GRIDFLEX® racking systems may contribute up to 19.6% of the total 50% domestic content requirement for a complete PV installation for MLPE based systems. When paired with select domestic content inverters on the market, the GRIDFLEX® 5D and GRIDFLEX® 10D racking systems can play a pivotal role in meeting the 50% domestic content threshold. Unirac has documentation for your tax professionals to help them determine if GRIDFLEX® racking systems work with your or your financer’s tax strategy.

Learn more below about the domestically manufactured components of the GRIDFLEX® racking system, including its light rail, structural fasteners, and MLPE mount.

*The content provided in this bulletin is for informational purposes only; it is not tax advice. Unirac cannot provide, and is not providing, tax advice regarding eligibility for tax credits, including the DCBC adder, as eligibility depends on several factors including a tax payer’s risk profile. Unirac is not a tax professional. The information provided here is Unirac’s good faith interpretation of these terms as of the publishing date of this bulletin, and that interpretation shall not be relied on for claiming the DCBC. Unirac’s interpretation and use of “rails” and “structural fasteners” in this bulletin is informative, non-limiting guidance only and is not intended to impede a tax payer’s interpretation of such terms. Unirac makes no representation or warranty that any customer or taxpayer will be able to claim a tax credit—including the DCBC—if it purchases Unirac domestic components. Not all parties can claim the domestic content bonus. Customers and system owners must consult their own tax advisors to determine eligibility, and customers and system owners assume all risk associated with making any tax credit claim. Unirac shall not be liable to any customer or system owner.

System Components

To build a fully functional GRIDFLEX® 5D & GRIDFLEX® 10D systems, the following components are required:

GRIDFLEX 5D, Rails
Rail Stiffener

The Rail Stiffener installs over the south-to-mid rail overlap, adding extra rigidity and reinforcing stability along the south row of modules.

GRIDFLEX 10D, Rails

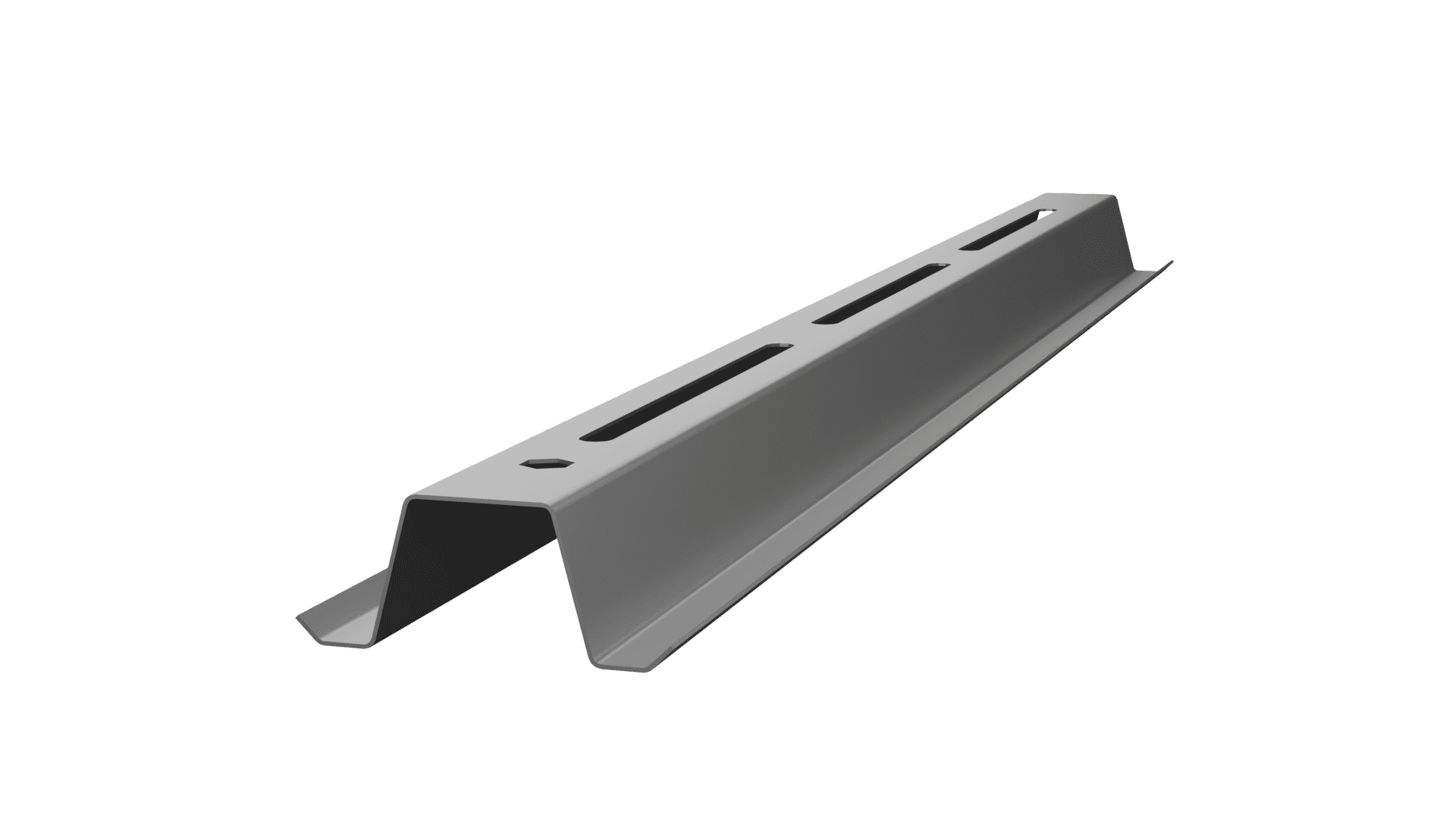

Rail Stiffener

The Rail Stiffener installs over the south-to-mid rail overlap, adding extra rigidity and reinforcing stability along the south row of modules.

GRIDFLEX 5D, Rails
Mid Rail

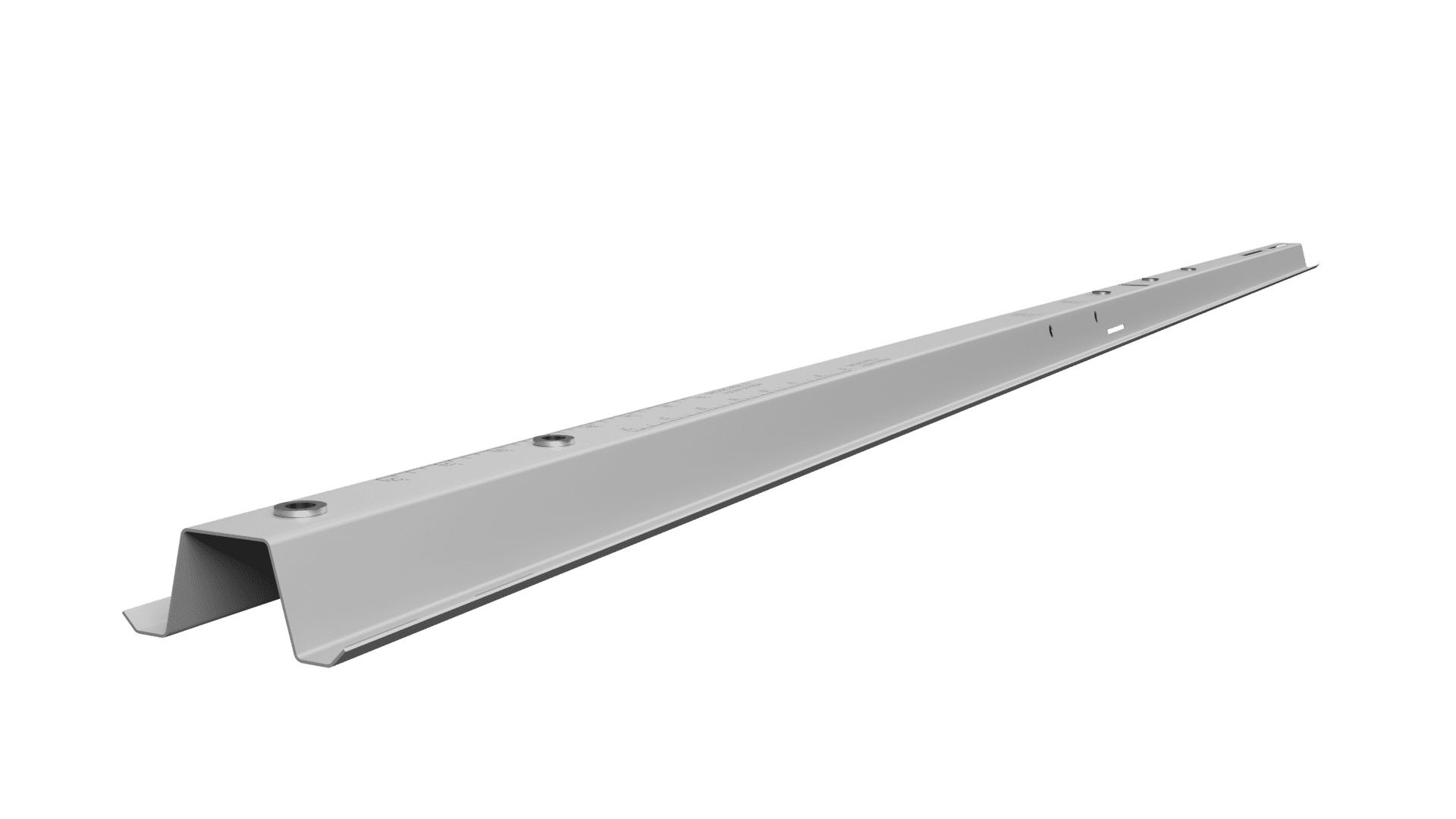

The Mid Rail provides support for field modules while increasing system stability. Each rail includes printed installation guides to ensure precise placement of South Clamps, North Stanchions, Ballast Rails, attachments, and overlap measurements, streamlining the installation process.

GRIDFLEX 10D, Rails
Mid Rail

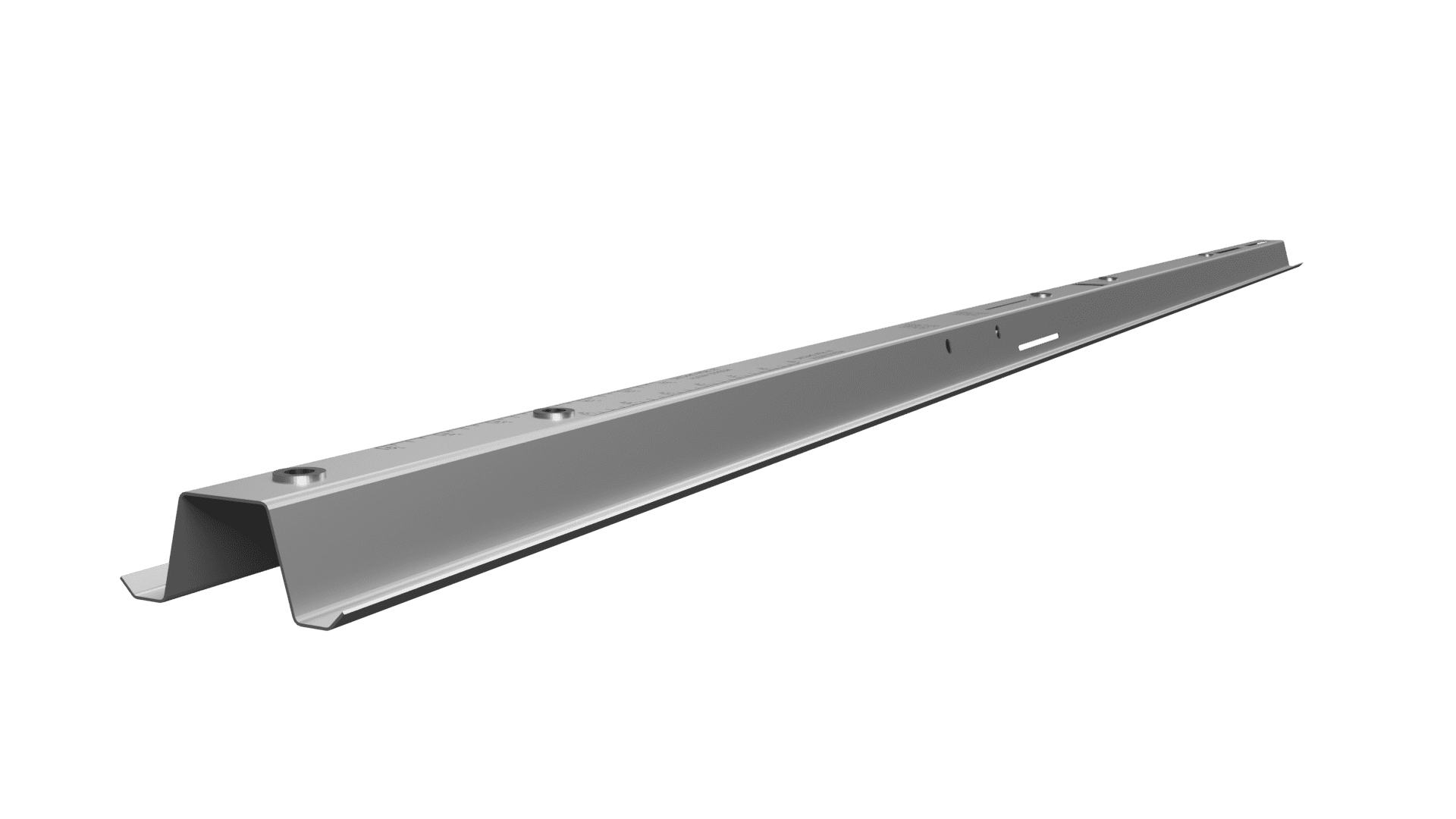

The Mid Rail provides support for field modules while increasing system stability. Each rail includes printed installation guides to ensure precise placement of South Clamps, North Stanchions, Ballast Rails, attachments, and overlap measurements, streamlining the installation process.

GRIDFLEX 5D, Rails

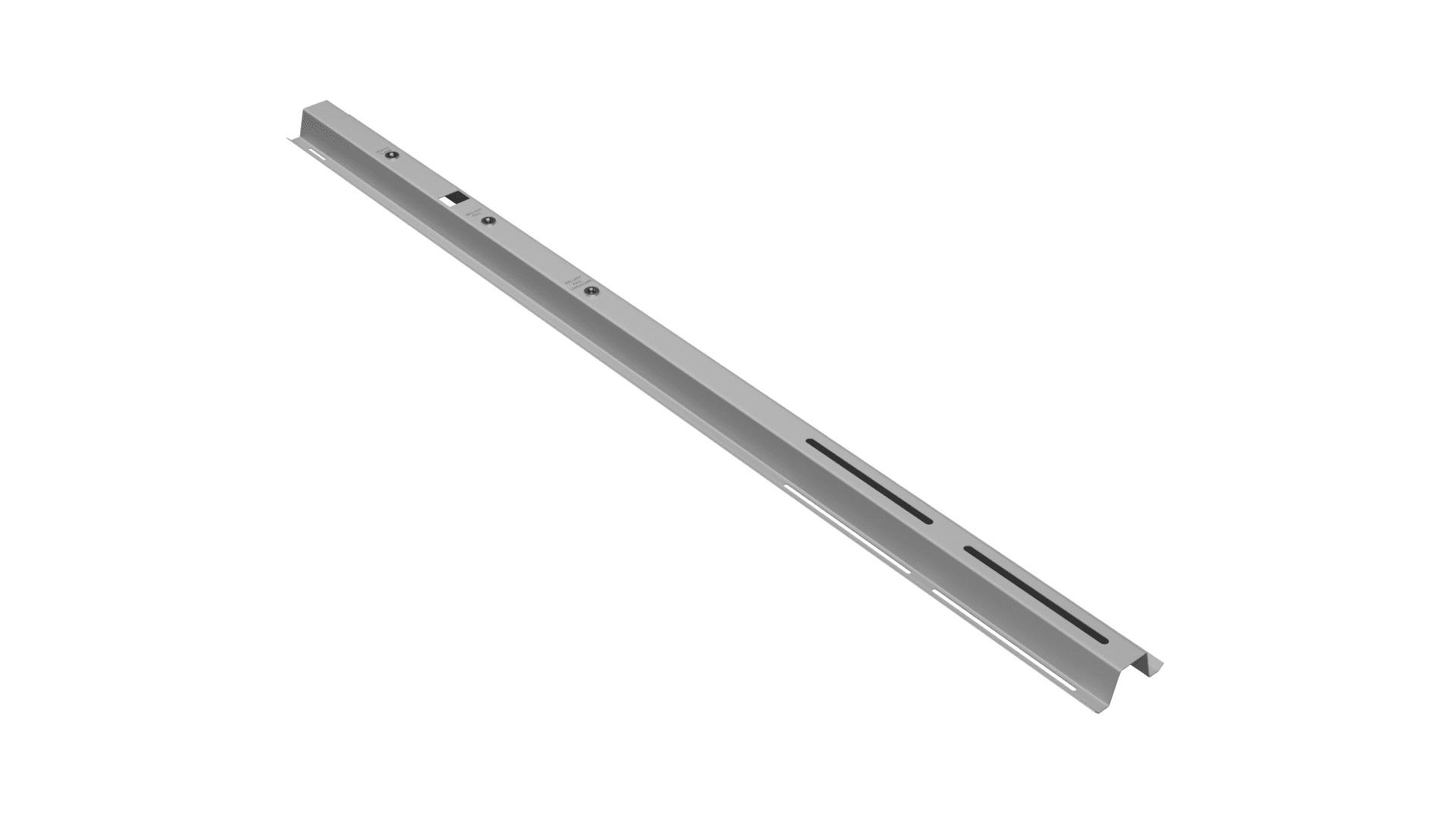

North Rail

The North Rail supports the north row of modules and strengthens overall system stability. Printed installation guides on each rail provide clear direction for North Stanchions, Ballast Rails, and attachments, ensuring fast and accurate installs.

GRIDFLEX 10D, Rails

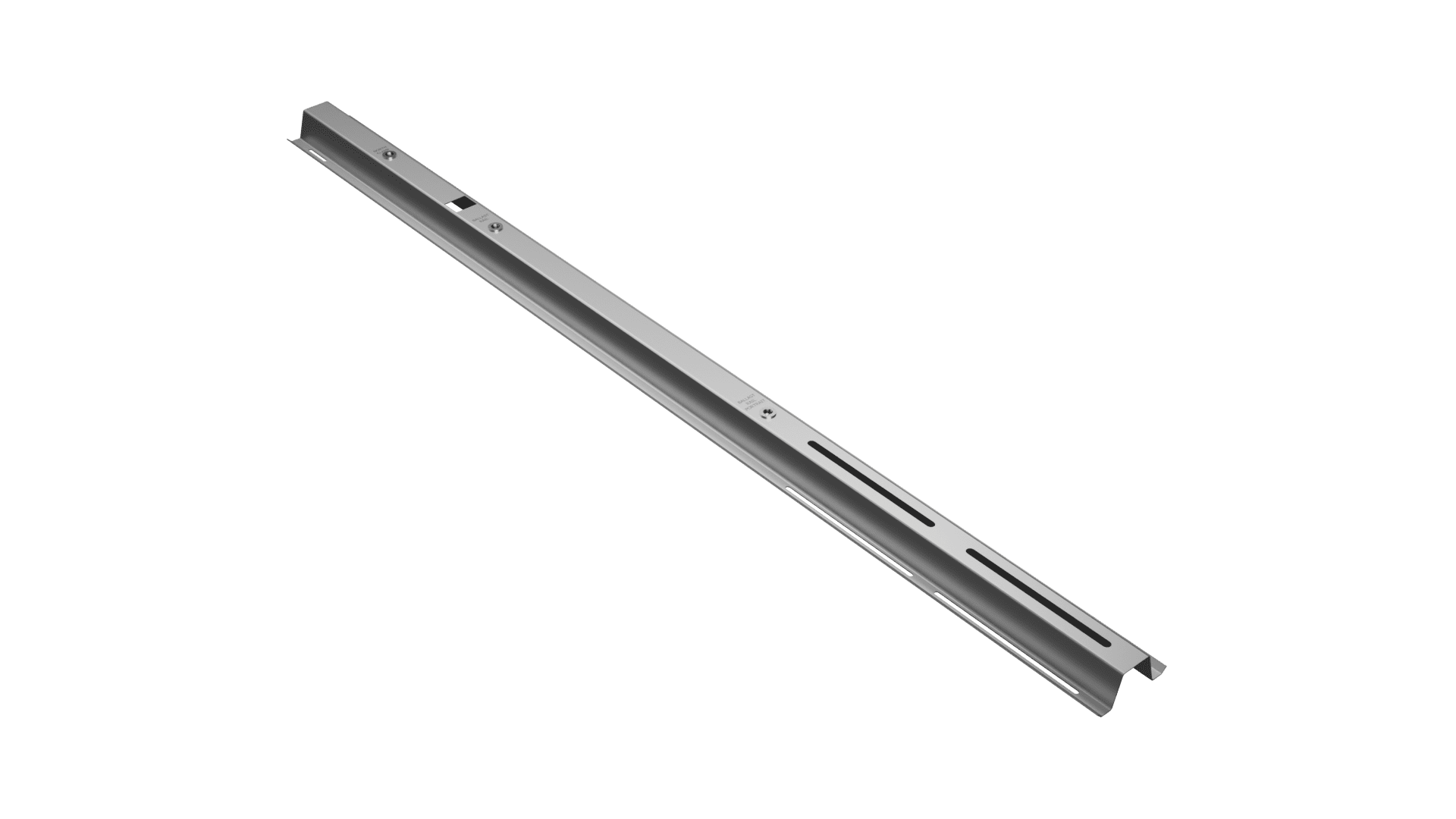

North Rail

The North Rail supports the north row of modules and strengthens overall system stability. Printed installation guides on each rail provide clear direction for North Stanchions, Ballast Rails, and attachments, ensuring fast and accurate installs.

GRIDFLEX 5D, Rails
South Rail

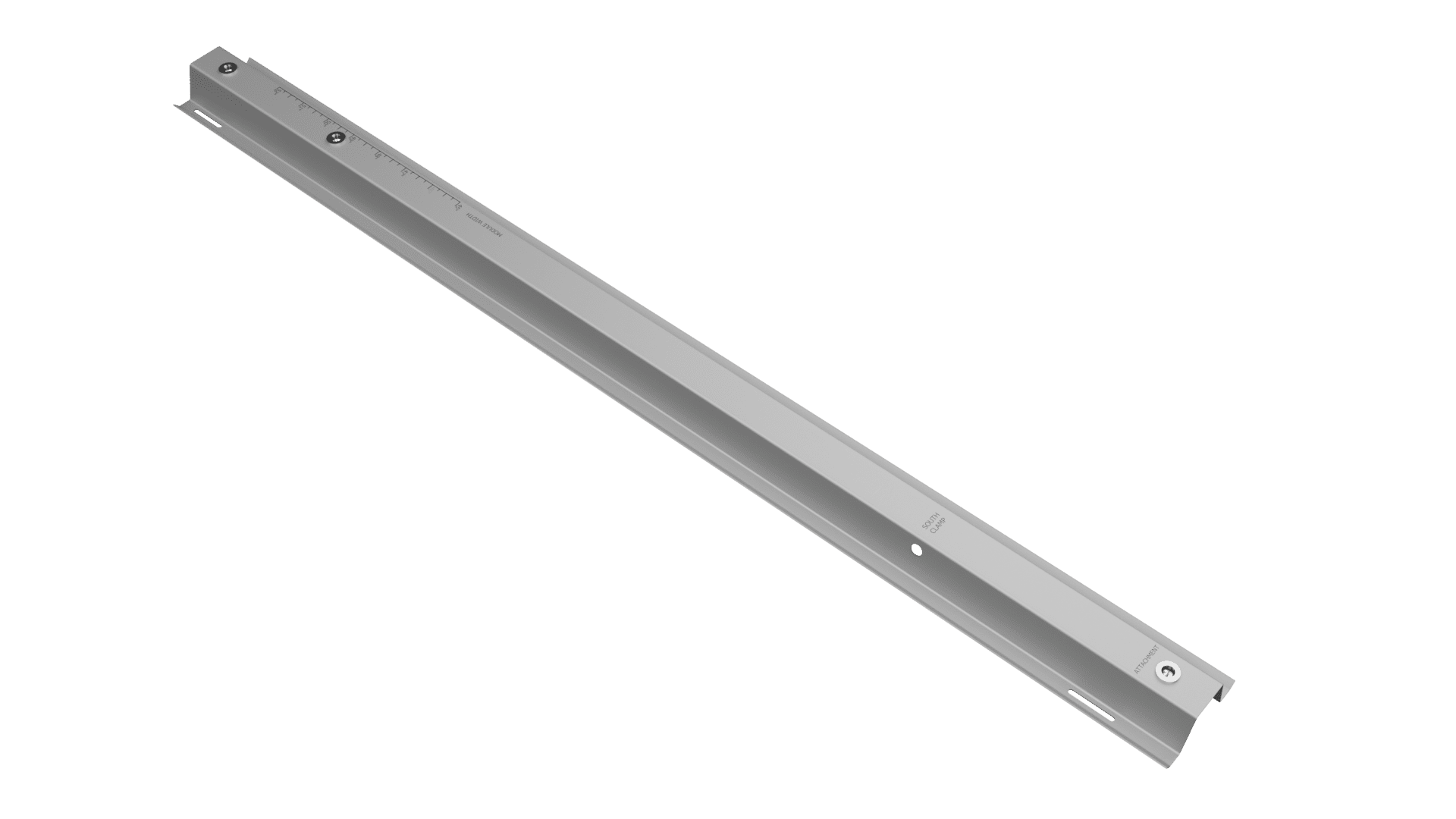

The South Rail runs perpendicular to the Module Clamps, adding rigidity to the system and providing support for the south row of modules. Each rail features printed installation guides that simplify placement of South Clamps, row attachments, and overlap measurements for faster, more accurate installs.

GRIDFLEX 10D, Rails

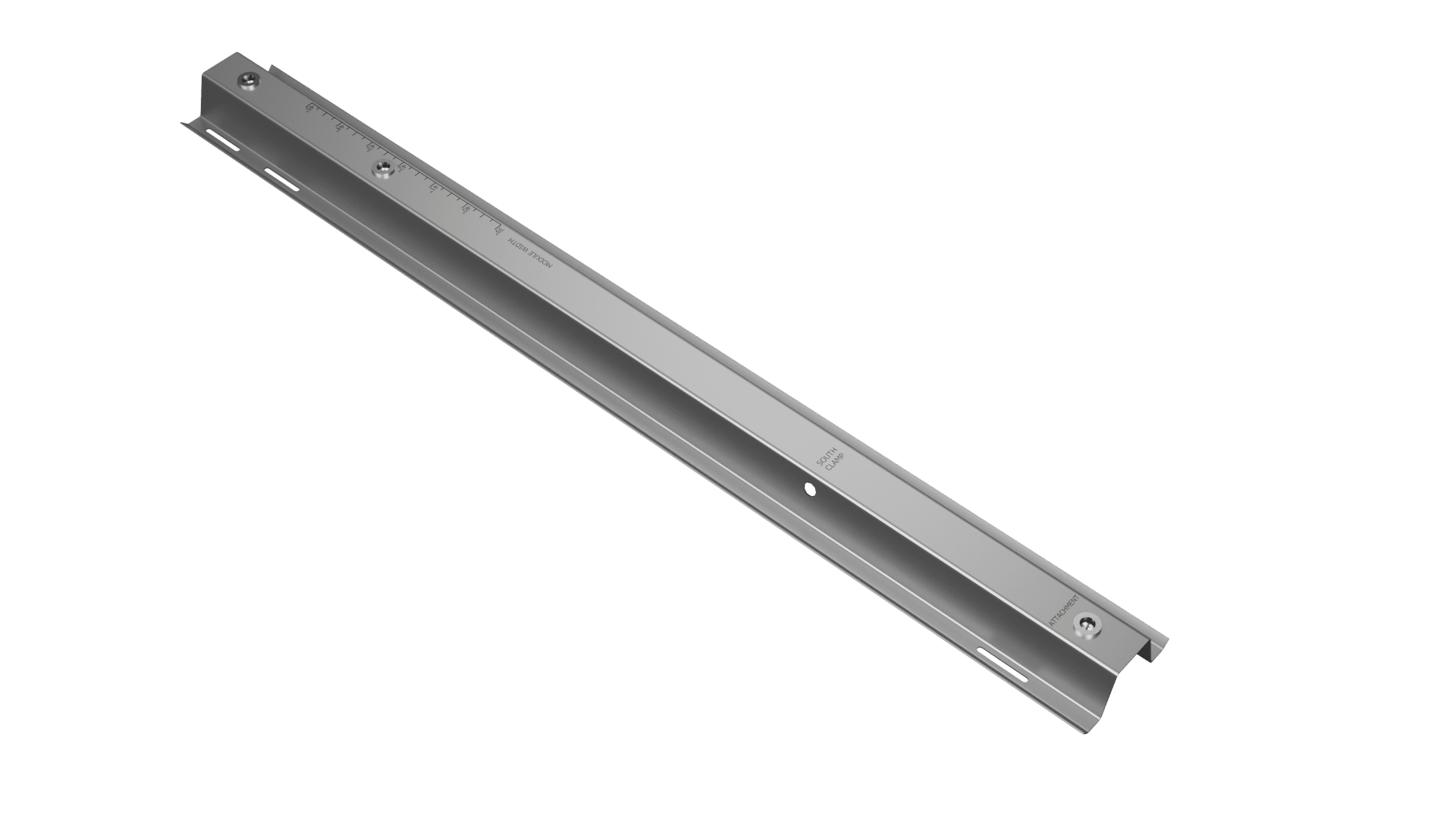

South Rail

The South Rail runs perpendicular to the Module Clamps, adding rigidity to the system and providing support for the south row of modules. Each rail features printed installation guides that simplify placement of South Clamps, row attachments, and overlap measurements for faster, more accurate installs.

GRIDFLEX 5D, GRIDFLEX 10D, Rails
Ballast Rail

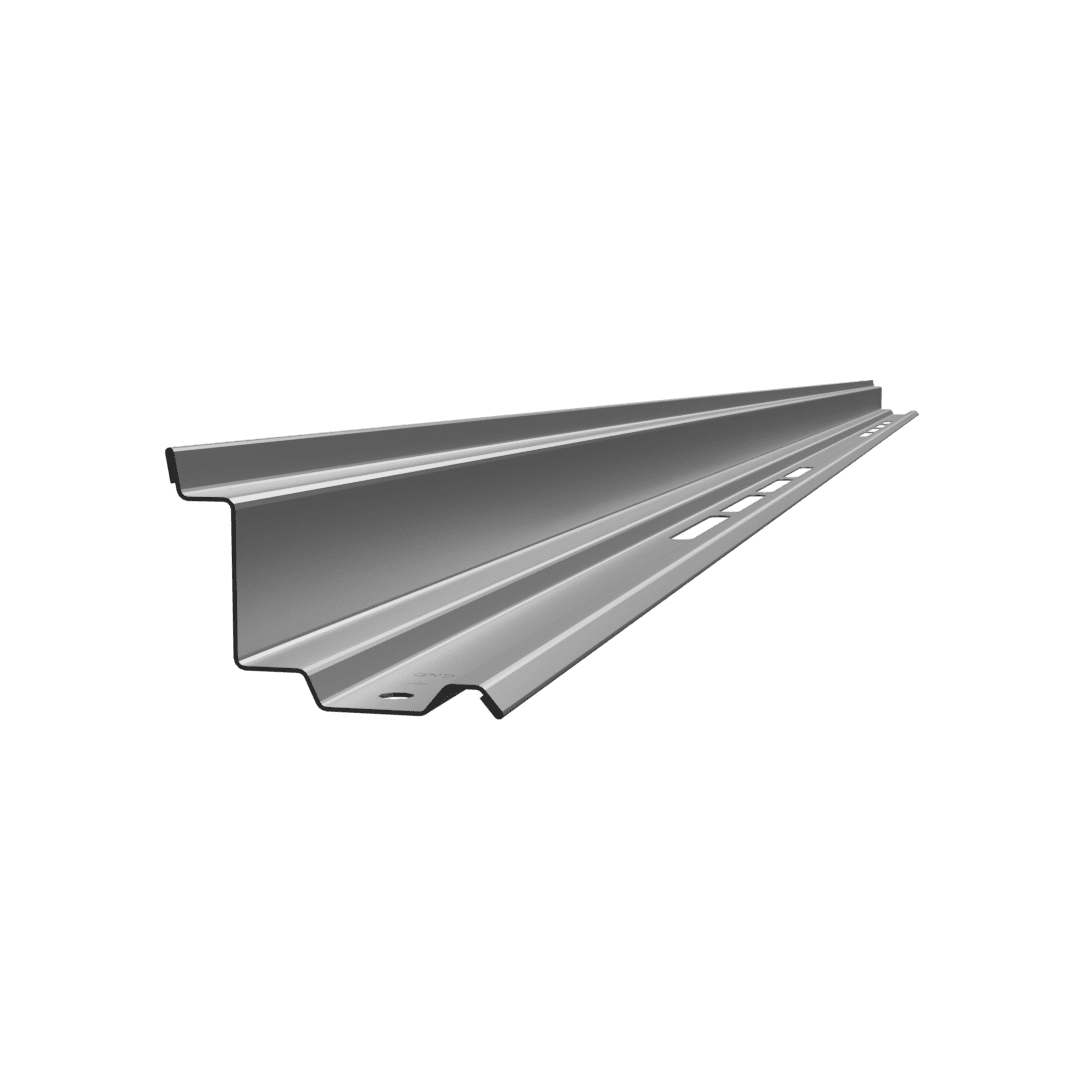

The Ballast Rail holds ballast blocks like a tray beneath the module, distributing weight evenly and enhancing system load sharing for improved stability.

GRIDFLEX 5D, Wind Deflector
Wind Deflector

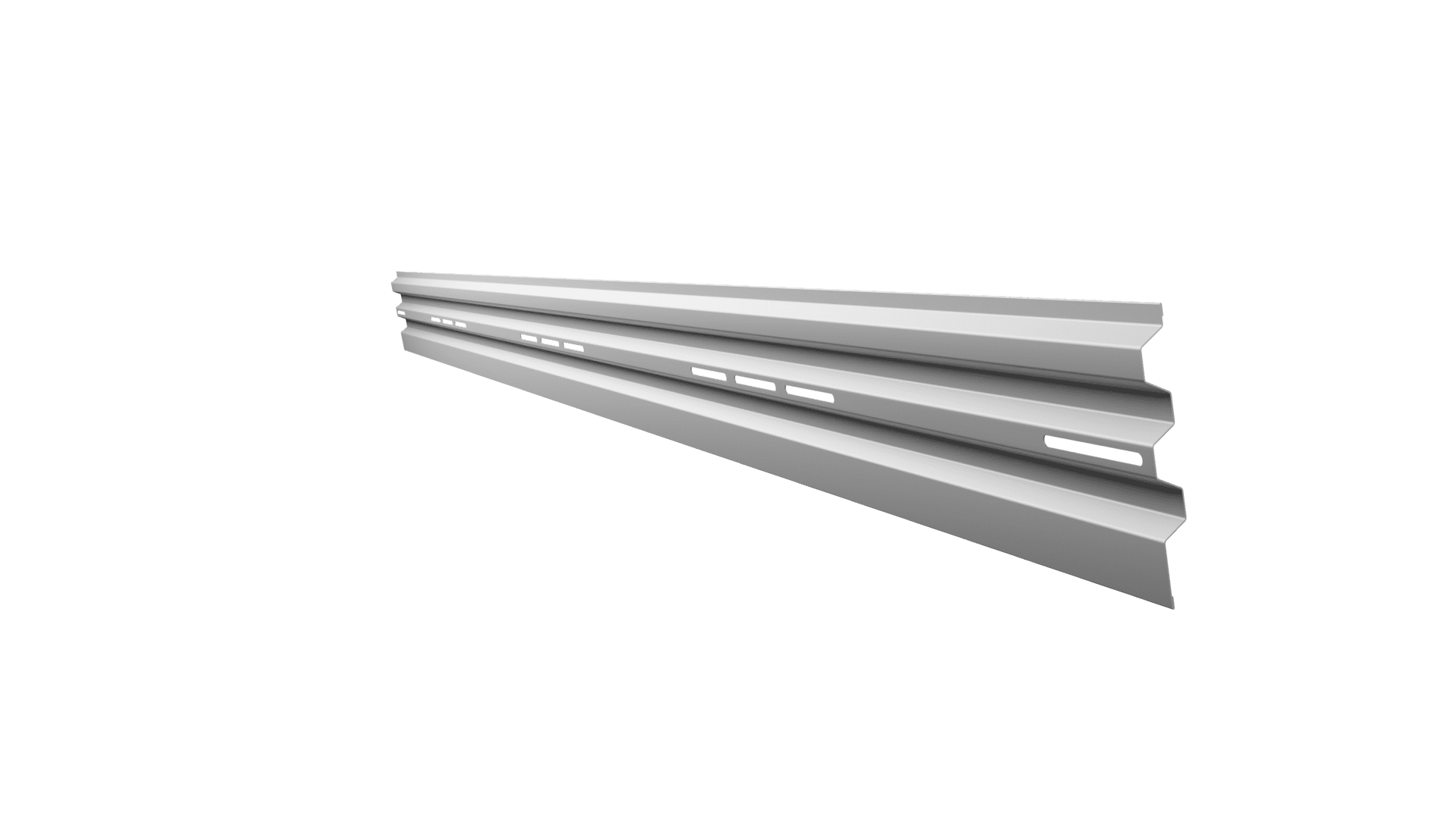

The Wind Deflector attaches to the North Stanchion to reduce wind uplift forces and enhance system load sharing for greater overall stability.

GRIDFLEX 10D, Wind Deflector

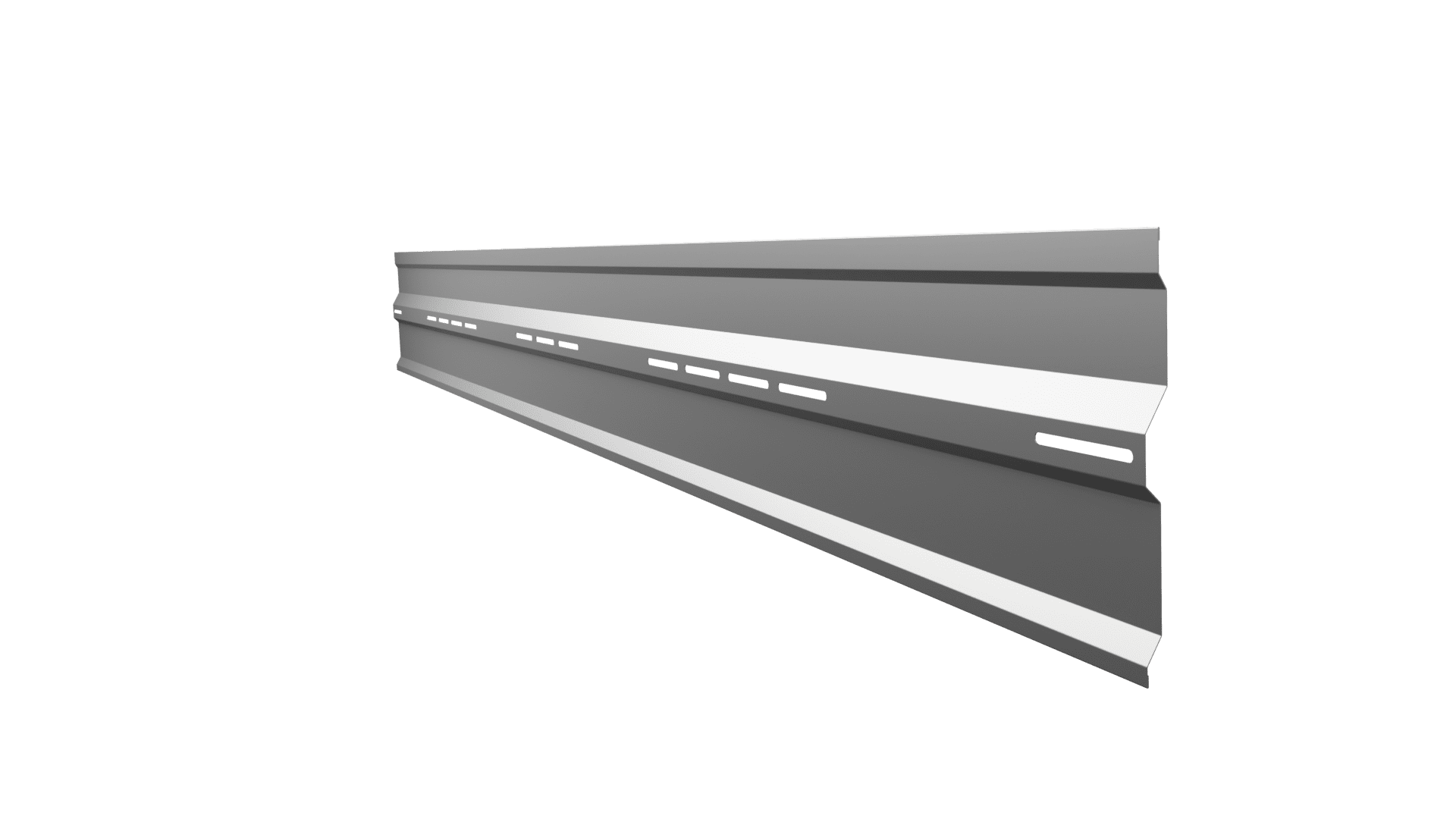

Wind Deflector

The Wind Deflector attaches to the North Stanchion to reduce wind uplift forces and enhance system load sharing for greater overall stability.

GRIDFLEX 5D, Clamps

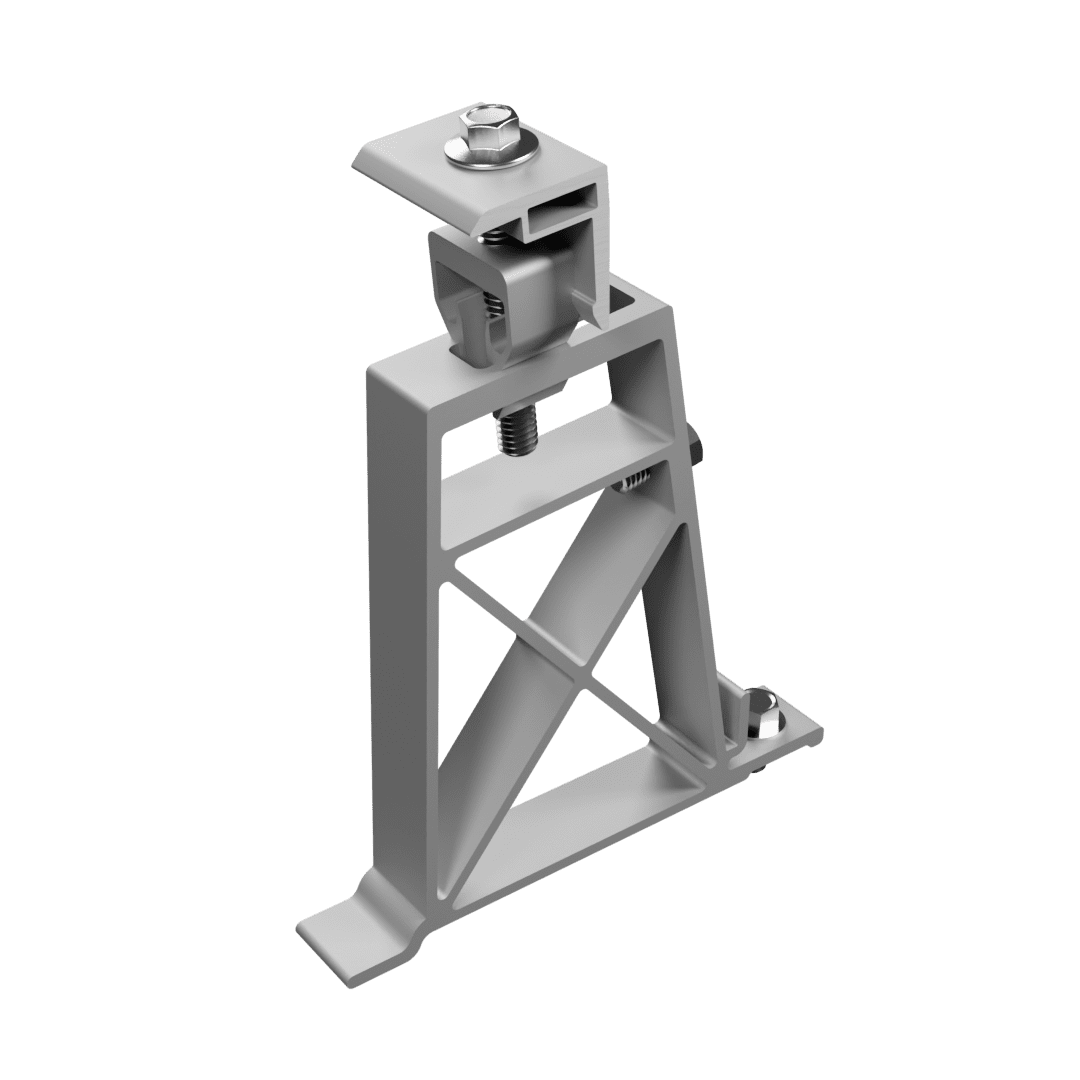

North Stanchion

The North Stanchion secures the north edge of the module to the base rails, creating a fixed 5° tilt for reliable system alignment and stability.

GRIDFLEX 10D, Clamps

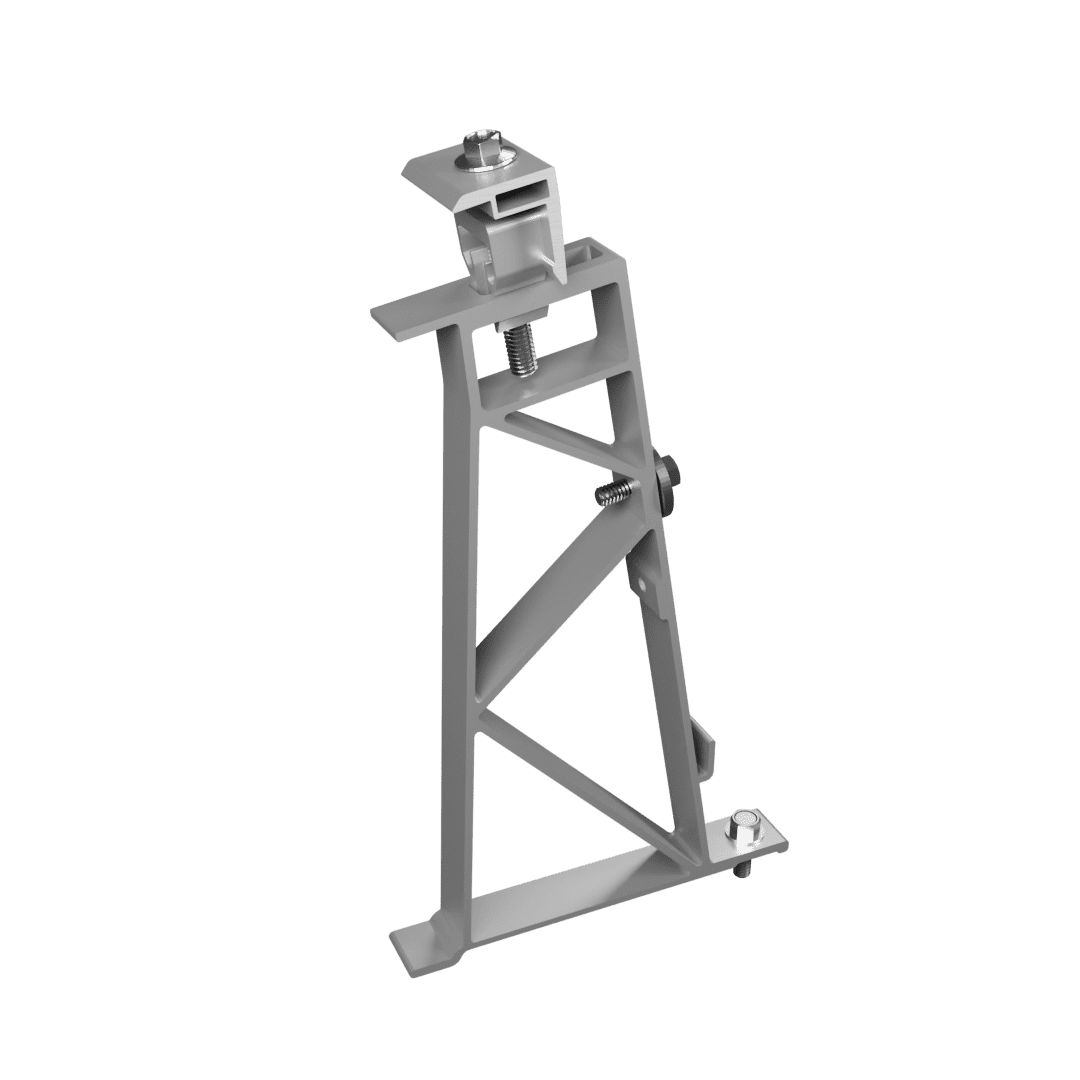

North Stanchion

The North Stanchion secures the north edge of the module to the base rails, creating a fixed 10° tilt for reliable system alignment and stability.

GRIDFLEX 5D, GRIDFLEX 10D, Clamps

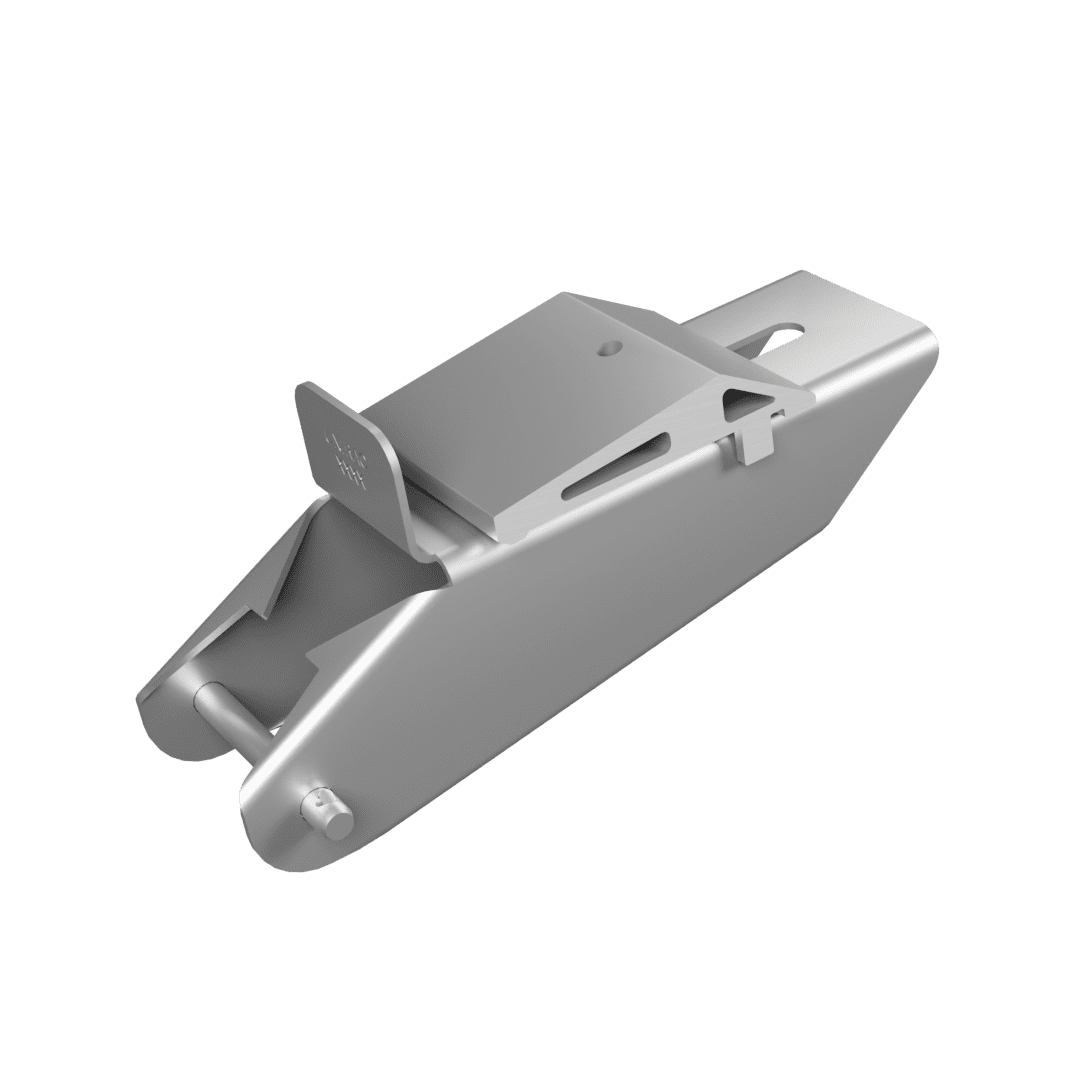

South Clamp

The South Clamp secures the south edge of the module to the base rails with a clevis pin connection, allowing the module to hinge open for easy access beneath the panel.

GRIDFLEX 5D, GRIDFLEX 10D, Accessories
Roof Pad

The Roof Pad mounts to the base rail to protect roof surfaces and provide slip resistance, helping stabilize the system.

GRIDFLEX 5D, GRIDFLEX 10D, Accessories

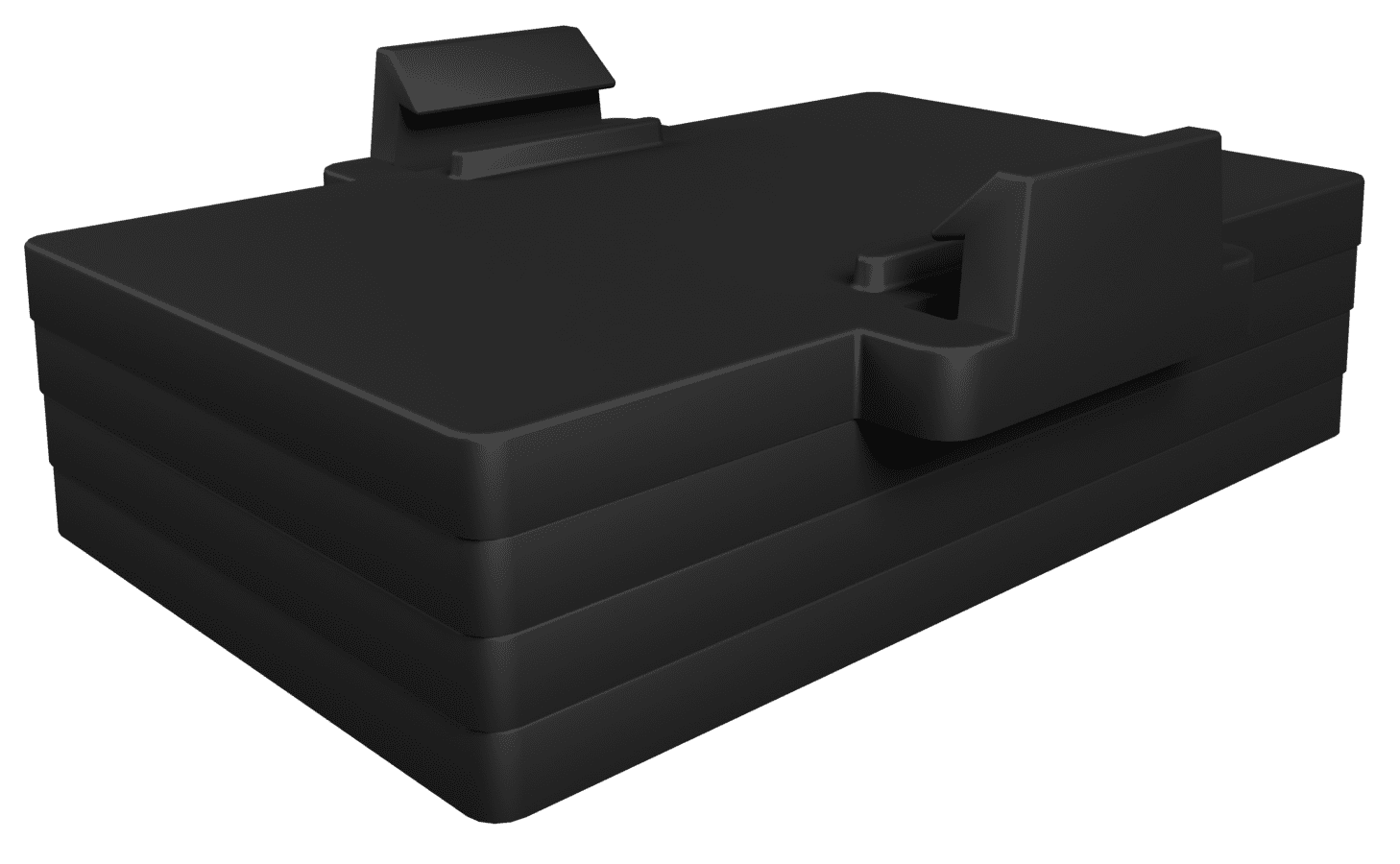

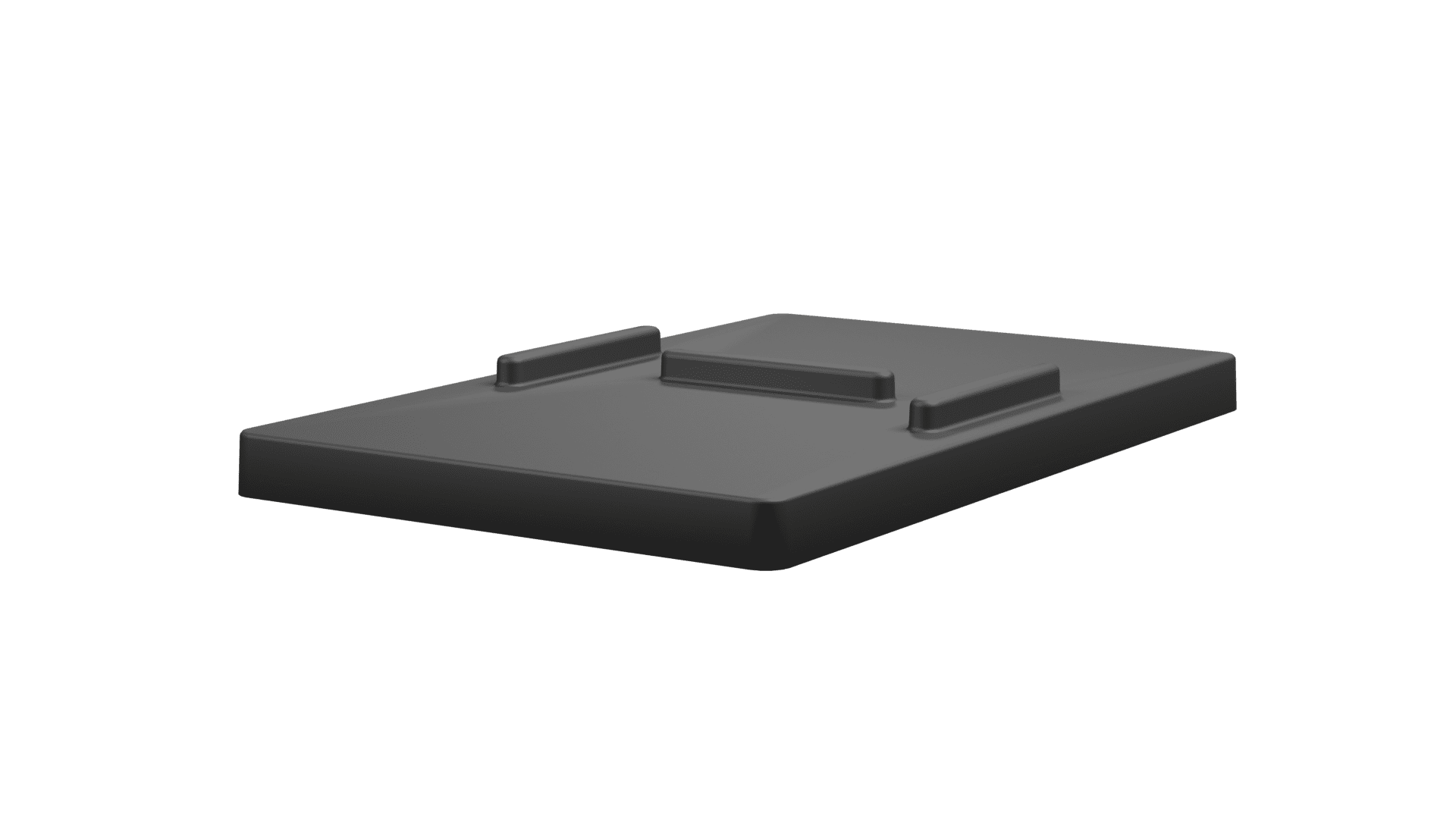

Stackable Roof Pad

Rubber Roof Pad nests to the clip-on Roof Pad to level the system over roof undulations

GRIDFLEX 5D, GRIDFLEX 10D, EBOSS

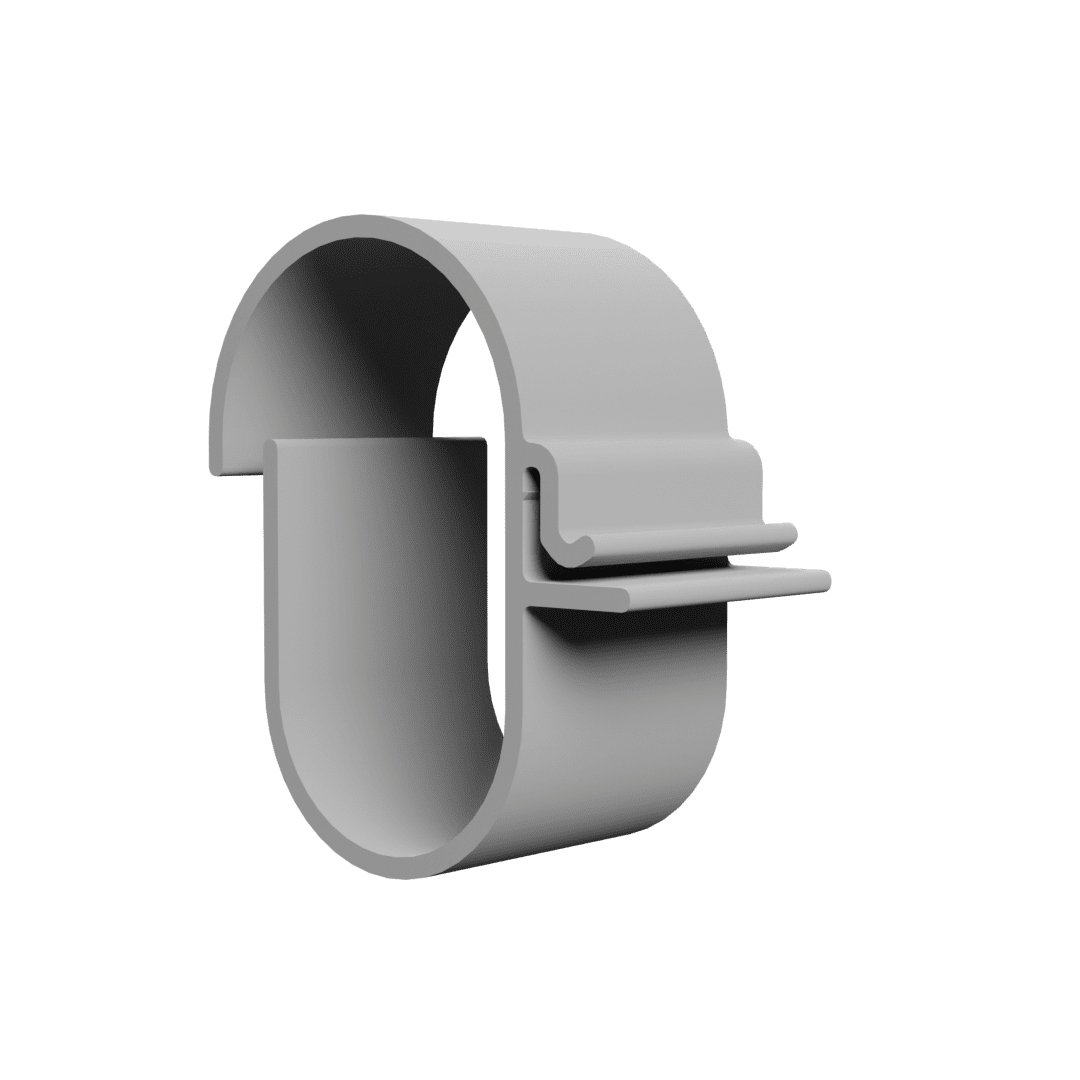

Wire Mgmt Clip

The Wire Management Clip mounts to the Ballast Rails to organize and secure east-west wiring for a clean, reliable installation.

GRIDFLEX 5D, GRIDFLEX 10D, EBOSS

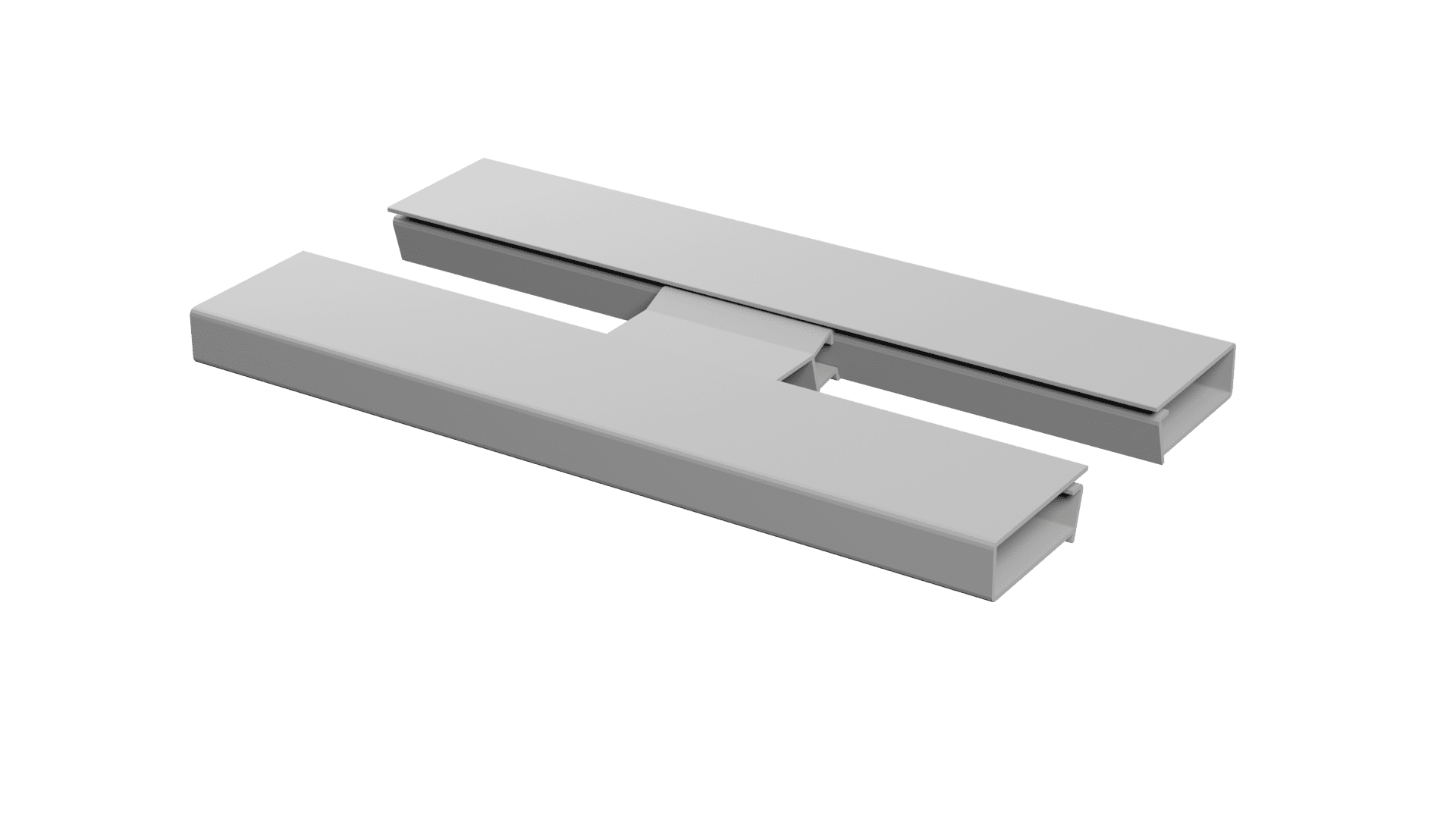

Homerun Cover

The Homerun Cover delivers tool-less wire management for north-south homerun runs, streamlining installation and keeping wiring organized.

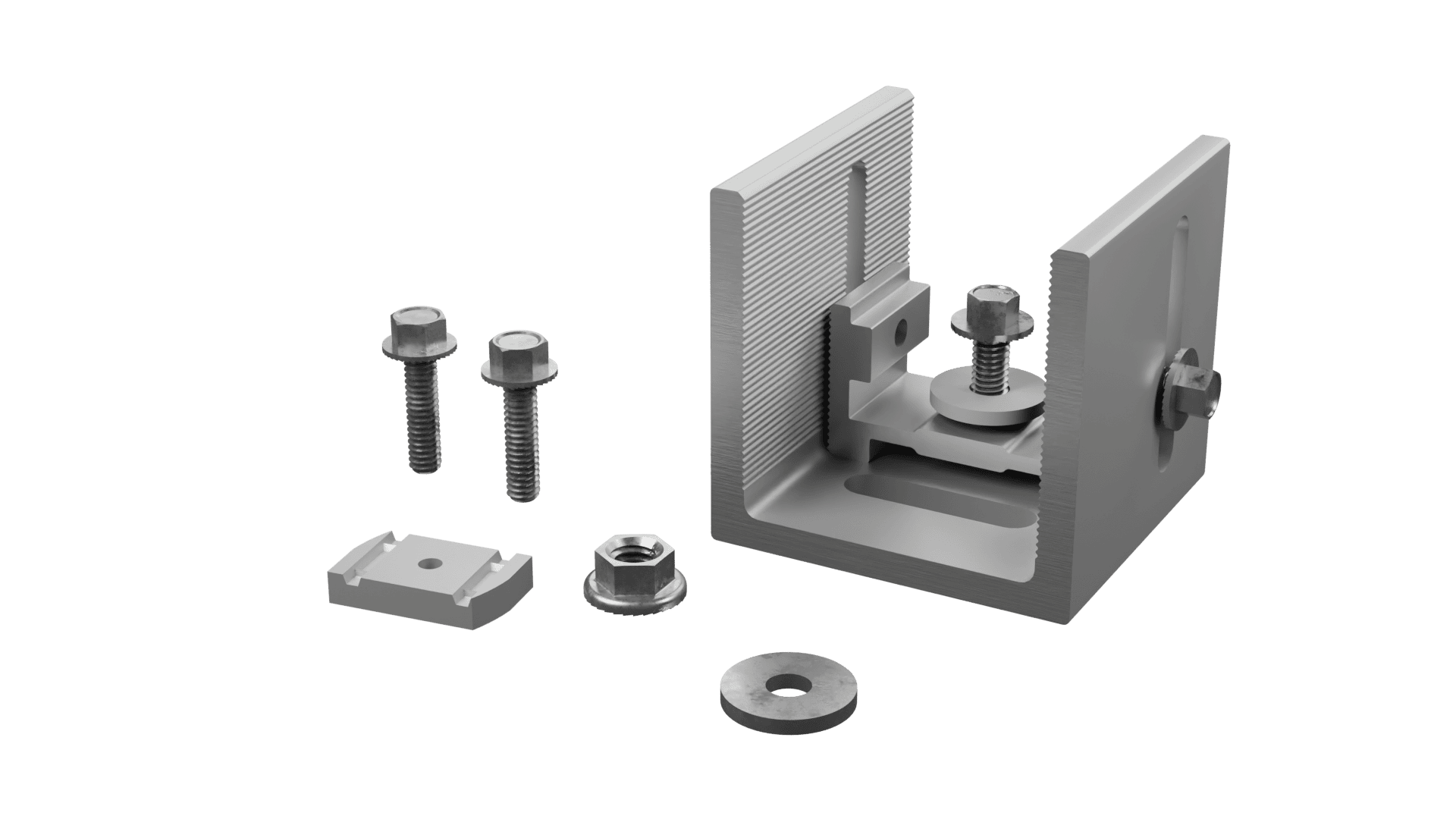

Attachments & ACCESSORIES


MLPE mount solar racking attachment with a hex bolt.
MLPE Mounts

Unirac’s MLPE Mounts offer a secure solution compliant with the UL 2703 standard for attaching microinverters and power optimizers directly to module frames….

Finishes
Mill
Learn More
Membrane
RAYTRAY™

Optimize your rooftop cable routing with RAYTRAY™—a modular, enclosed wire management system designed for commercial flat roof solar arrays. Built from…

Learn More
Gravel, Membrane, Mineral Cap Tar
ECOMOUNT® 1 & 2 INVERTER KITS

The EcoMount 1 Inverter Kit (holds two mounts) and EcoMount 2 Inverter Kit (holds three mounts) are universal clamp solutions engineered for secure, flexible…

Learn More
Membrane
FLASHLOC® RM

FLASHLOC® RM is Unirac’s most robust and versatile roof attachment for flat roof solar applications. Designed for speed, strength, and simplicity, this…

Learn More

Resources


Technical Documentation
