ECOFOOT® 2+

10-Degree Landscape/5-Degree Portrait Ballasted Tilt Flat Roof System for Commercial Installations

More layout options. Faster installs with ECOFOOT 2+

OVERVIEW

ECOFOOT® 2+ delivers the speed, flexibility, and reliability of solar installers needed for flat roof projects. Its modular design, preassembled components, and fast installation workflow are designed to reduce labor hours while maximizing system performance. Whether configured in a 5° portrait or 10° landscape tilt, ECOFOOT® 2+ gives you more layout options and faster installations without compromising structural integrity or ballast capacity. Backed by extensive third-party testing and Unirac’s expert support team, ECOFOOT® 2+ is built to meet the demands of real-world rooftops.

Installs on
Gravel
Membrane
Mineral Cap Tar

Key Features & Benefits

Fast Installation

DNV-GL rated for 13.5 modules per installer-hour with just a 5-minute learning curve.

Three Pre-Assembled Main Components

Base, universal clamp, and wind deflector for streamlined installation.

Flexible System Design

Configure in 5° portrait or 10° landscape to optimize roof space.

Universal Clamp

Preassembled and fits 30–50mm module frames—no extra parts needed.

Superior Material Performance

Made from UL-listed ASA resin used in automotive and construction industries.

Certified for Reliability

Structurally tested, CFD-modeled, wind tunnel and seismic compliant.

Corrosion-Resistant Wind Deflectors

Reduce uplift forces and ballast requirements.

Built-in Grounding & Bonding

Meets the UL 2703 standard.

Patented

This product may be protected by one or more U.S. Patents. Visit our patent page to learn more.

Domestically manufactured products available

System Components

To build a fully functional ECOFOOT® 2+ system, the following components are required.

Base

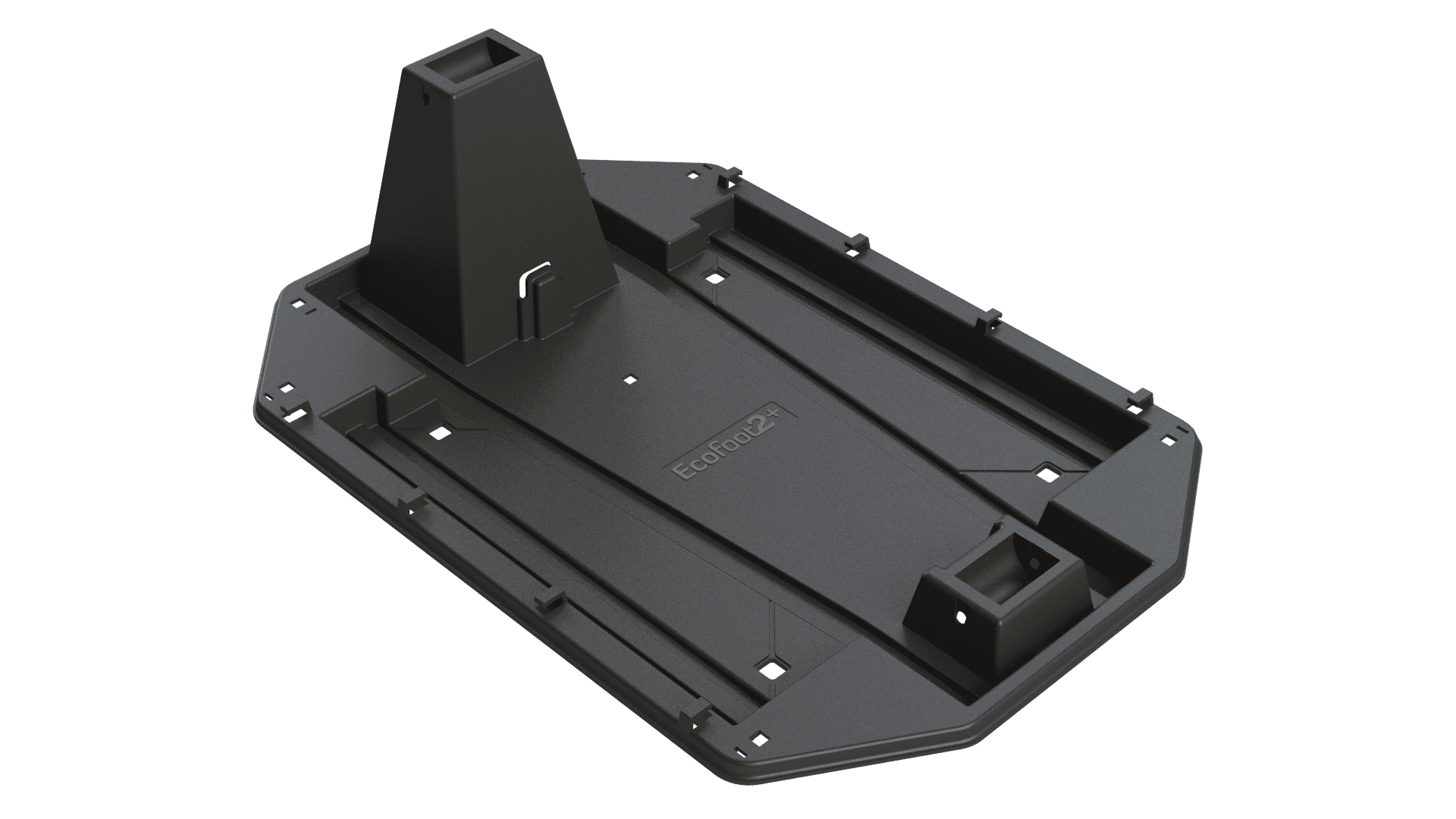

ECOFOOT® 2+ Base

The ECOFOOT® 2+ Base supports the north and south sides of the modules while accommodating ballast blocks for secure, stable installations.

Clamps

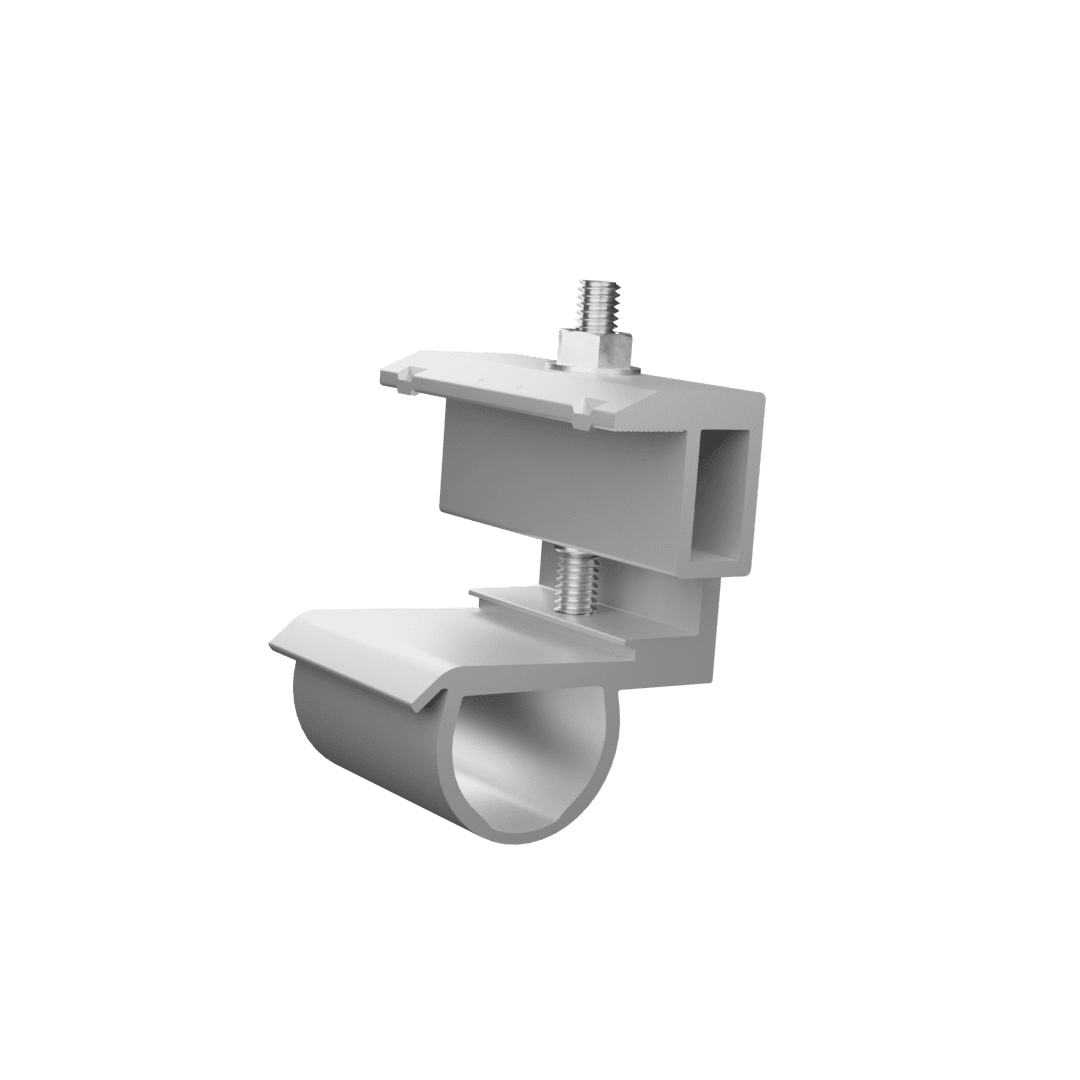

Universal Clamp

The Universal Clamp secures the north and south edges of the module to the base, ensuring a stable connection and proper alignment.

Clevis Pin

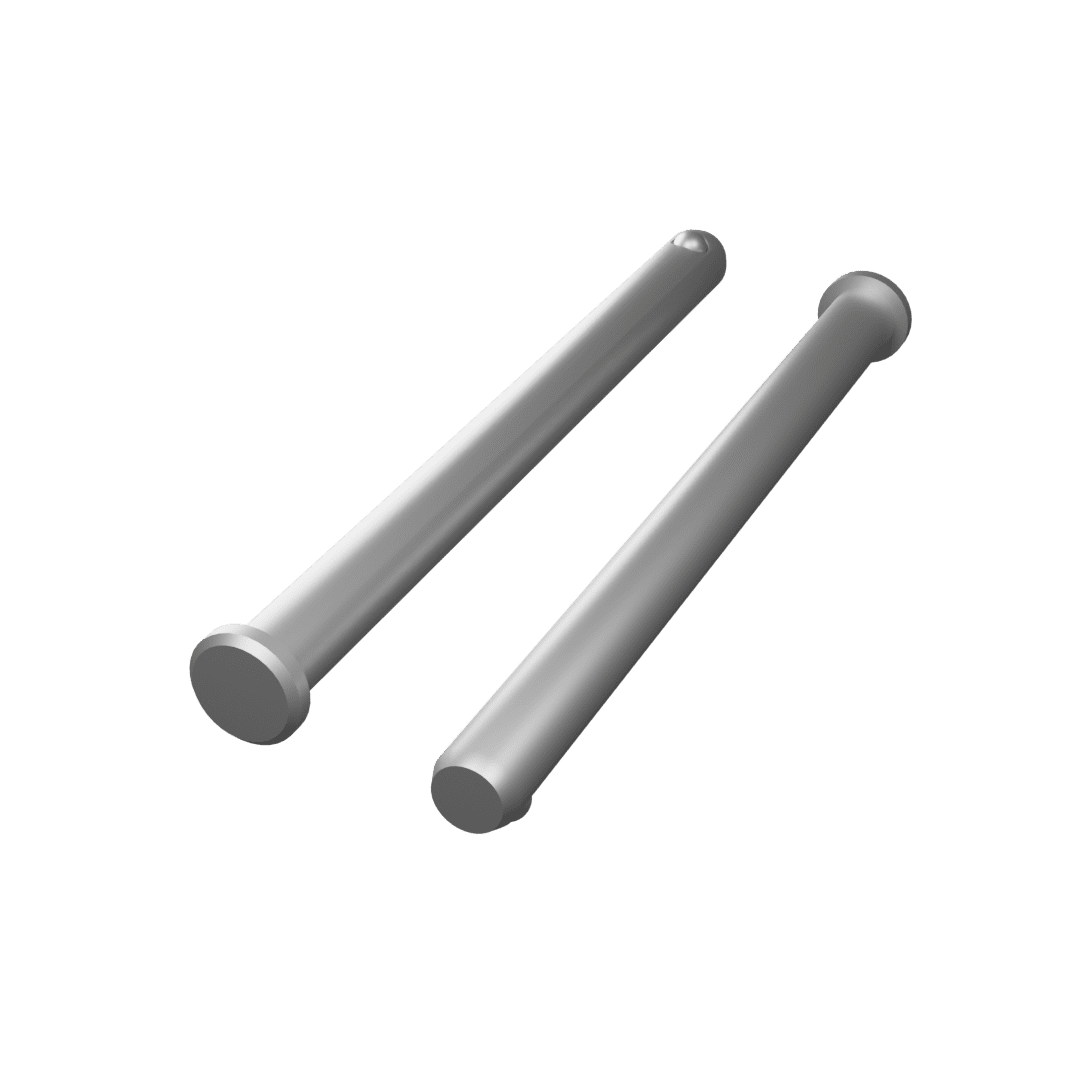

Clevis Pin

The Clevis Pin secures clamps to the base, locking components in place for a reliable connection.

Wind Deflector

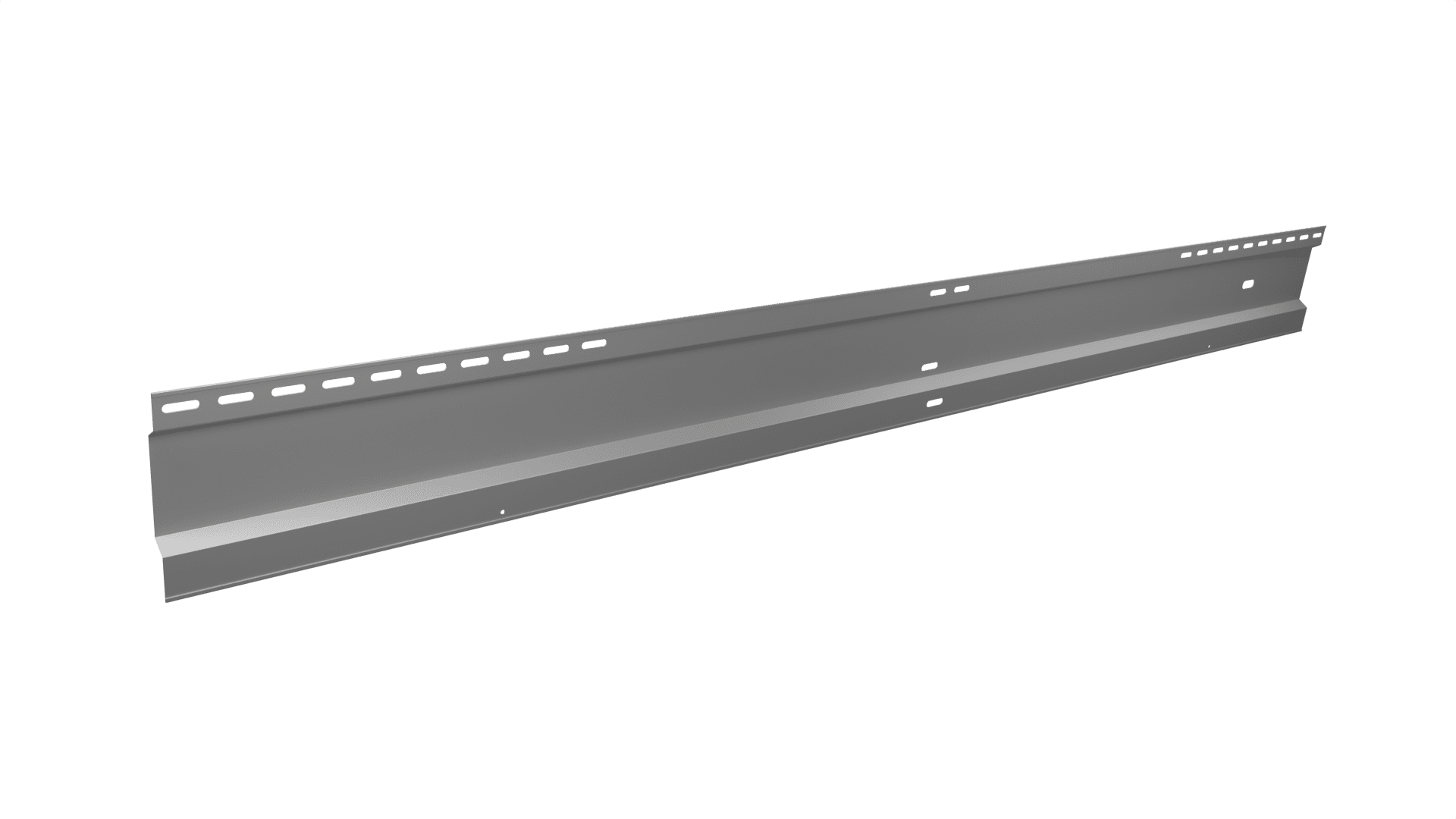

Deflector

The Deflector attaches to the high side of the base to reduce wind uplift forces, allowing for lower ballast requirements and improved system efficiency.

Mid Support

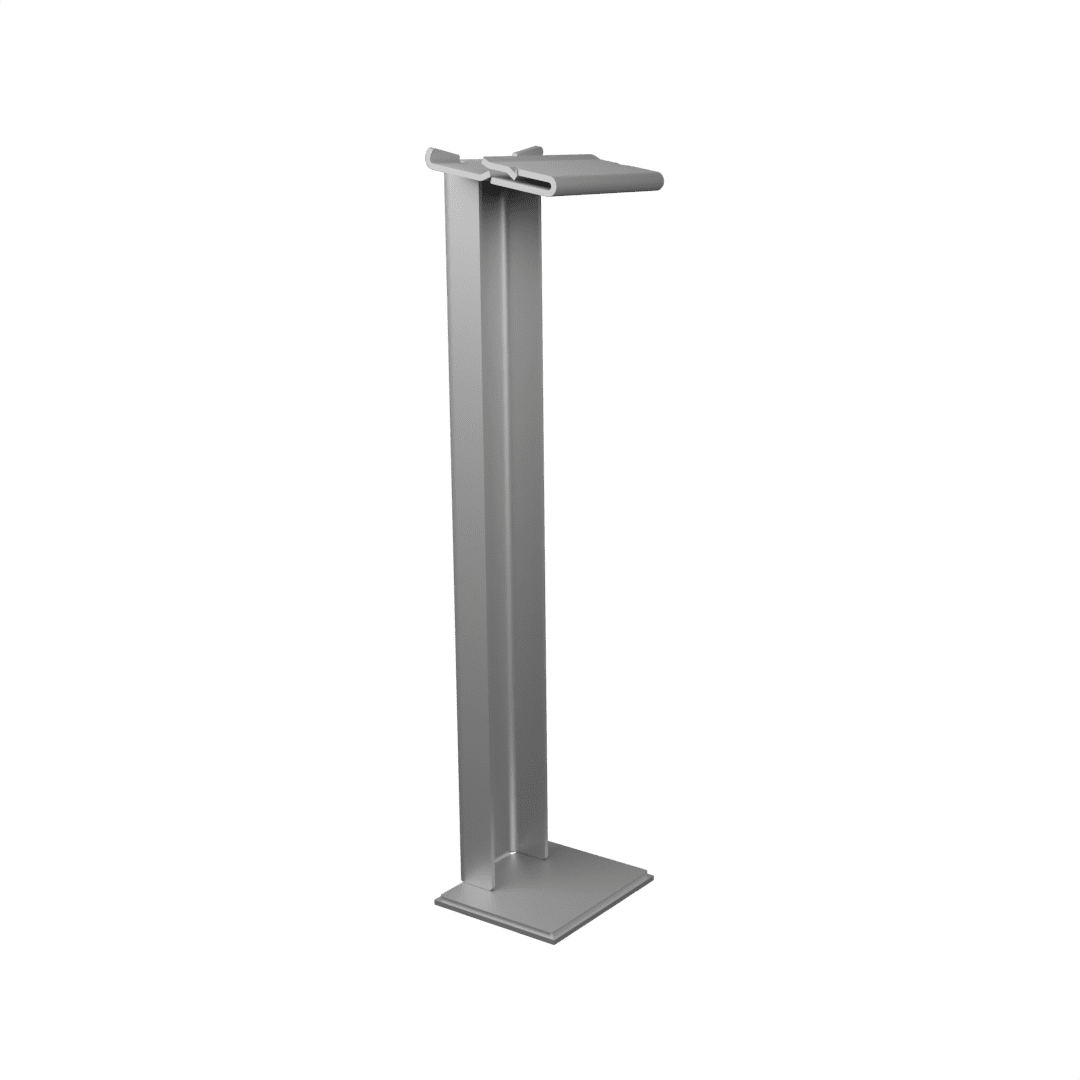

Mid Support Upper

The Mid Support Upper attaches to the return flange of the module’s north edge, adding reinforcement at the center of the frame for greater stability.

Mid Support

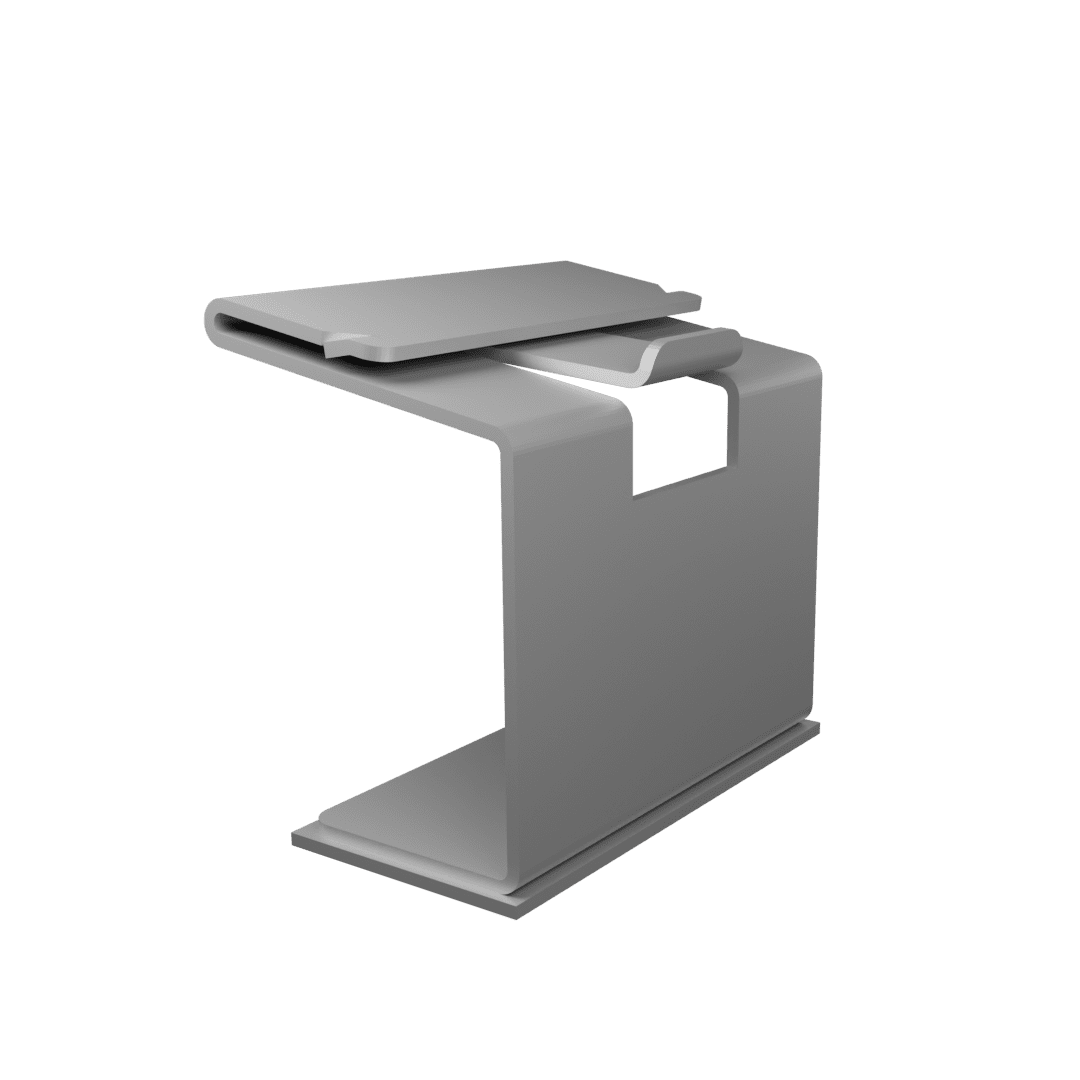

Mid Support Lower

The Mid Support Lower attaches to the return flange of the module’s south edge, reinforcing the center of the frame for added stability.

Attachments & ACCESSORIES

MLPE Mounts

Unirac’s MLPE Mounts offer a secure solution compliant with the UL 2703 standard for attaching microinverters and power optimizers directly to module frames….

Finishes
Mill
Learn More
Membrane
RAYTRAY™

Optimize your rooftop cable routing with RAYTRAY™—a modular, enclosed wire management system designed for commercial flat roof solar arrays. Built from…

Learn More
Gravel, Membrane, Mineral Cap Tar
ECOMOUNT® 1 & 2 INVERTER KITS

The EcoMount 1 Inverter Kit (holds two mounts) and EcoMount 2 Inverter Kit (holds three mounts) are universal clamp solutions engineered for secure, flexible…

Learn More
Membrane
FLASHLOC® RM

FLASHLOC® RM is Unirac’s most robust and versatile roof attachment for flat roof solar applications. Designed for speed, strength, and simplicity, this…

Learn More
