GROUND FIXED TILT^™

Single Post Geometry System with 20° and 30° Tilt Options for Commercial Installations

Engineered Simplicity for Ground Mount Solar

Description

Unirac’s GROUND FIXED TILT™ system is a pre-engineered, single-post solution designed to simplify ground mount projects of any scale. With 20° and 30° tilt options and compatibility with all large-format modules, GROUND FIXED TILT uses standardized, lightweight components that are in stock and ready to ship. Backed by industry-leading project support, GROUND FIXED TILT delivers speed, strength, and system flexibility from permitting through installation.

Installs on

Ballasted

Concrete

Driven Pile

Key Features & Benefits

In Stock and Ready to Ship

Rapid access to components through the largest ground mount distribution network in North America ensures on-time project delivery.

Simplified Construction

Kitted hardware, pre-assembled braces, and integrated bonding reduce labor and streamline installation—no specialized training required.

Engineered for Versatility

Supports shared rail or standard quarter-point mounting for most residential and commercial modules. Choose from 3, 4, 5, or 6-rail designs.

Flexible Foundation Options

Compatible with multiple foundation types, including 4.5″ x 6″ C-pile systems, to meet site-specific requirements.

Lightweight, Labor-Friendly Design

Standardized aluminum components allow for easy one- or two-person installation without compromising strength.

Region-Specific Engineering

Pre-engineered designs meet code requirements across various jurisdictions, saving time during permitting and approvals.

patented

This product may be protected by one or more U.S. Patents. Visit our patent page to learn more.

Domestically manufactured products available

System Components

To build a fully functional system, the following components are required.

Rails

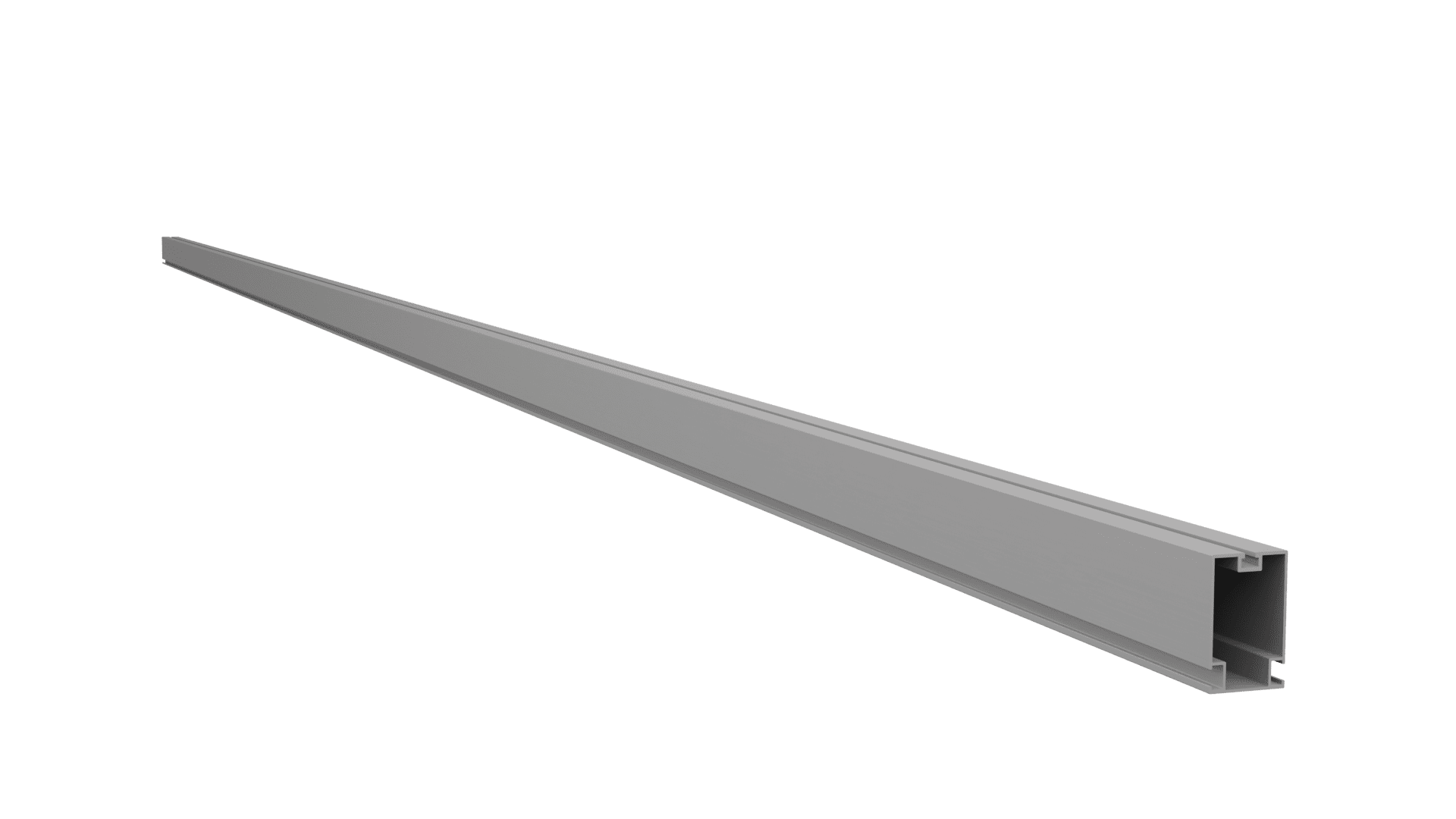

GFT Rails

Supports modules These beams run perpendicular to the top chord channels and directly support the solar panels, which are attached using clamps.

Piles

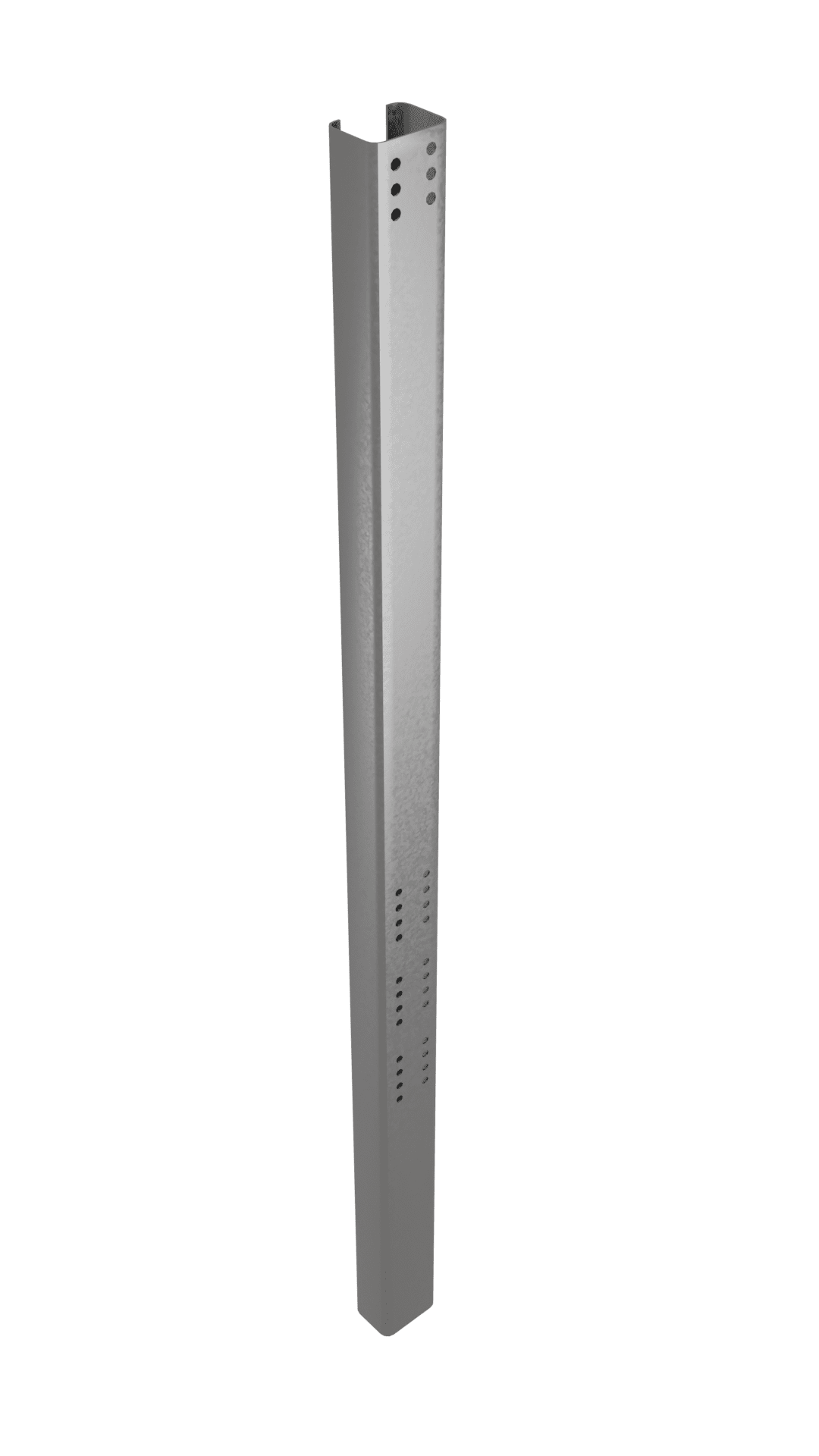

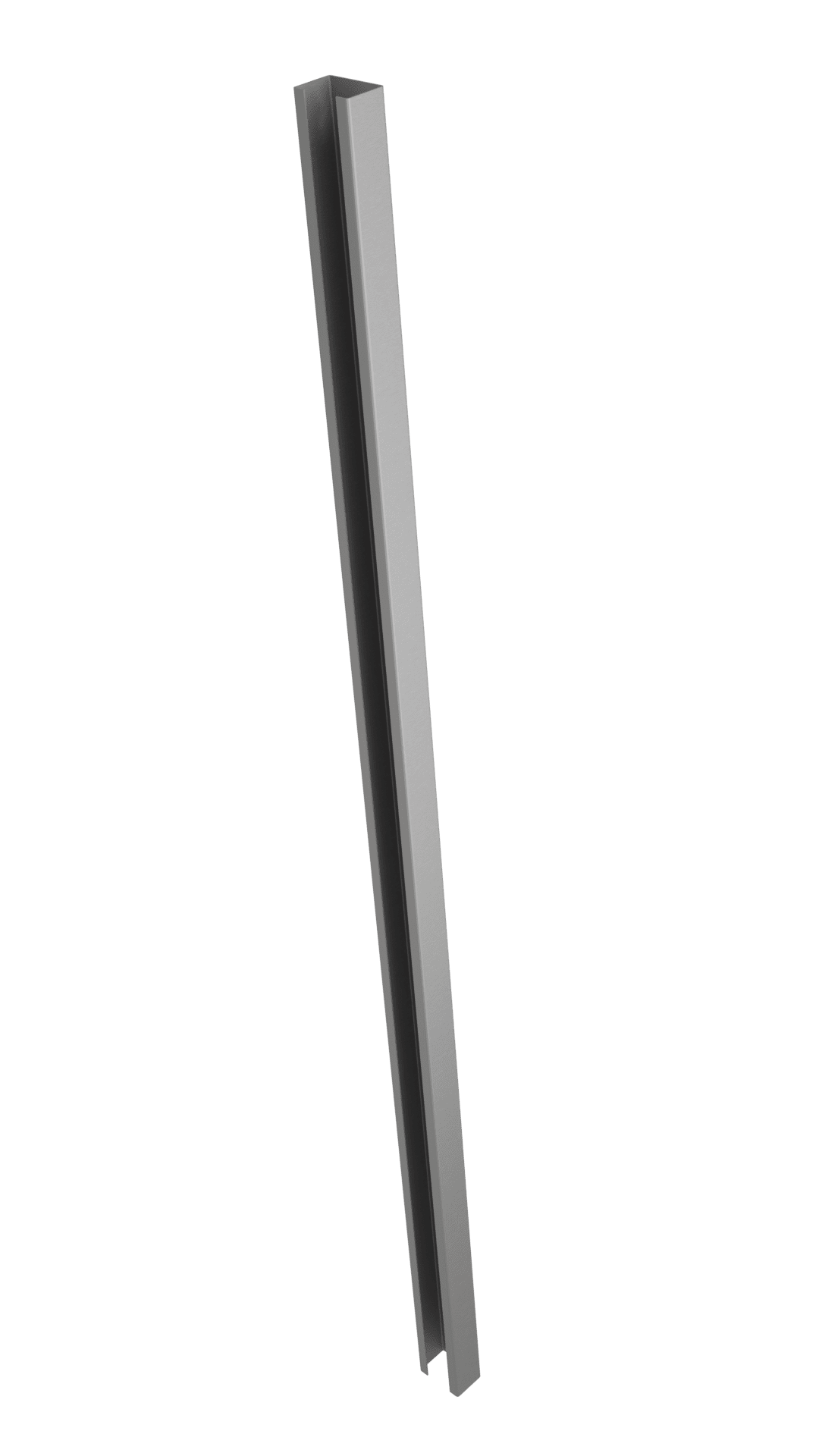

C-Piles

Main structural member of system the anchors the array to the ground. These are the primary vertical supports for the array. Made of steel, they are available in 10.5’, 12.5’ and 15’ lengths so they can be driven directly into the ground for a stable foundation.

Rails

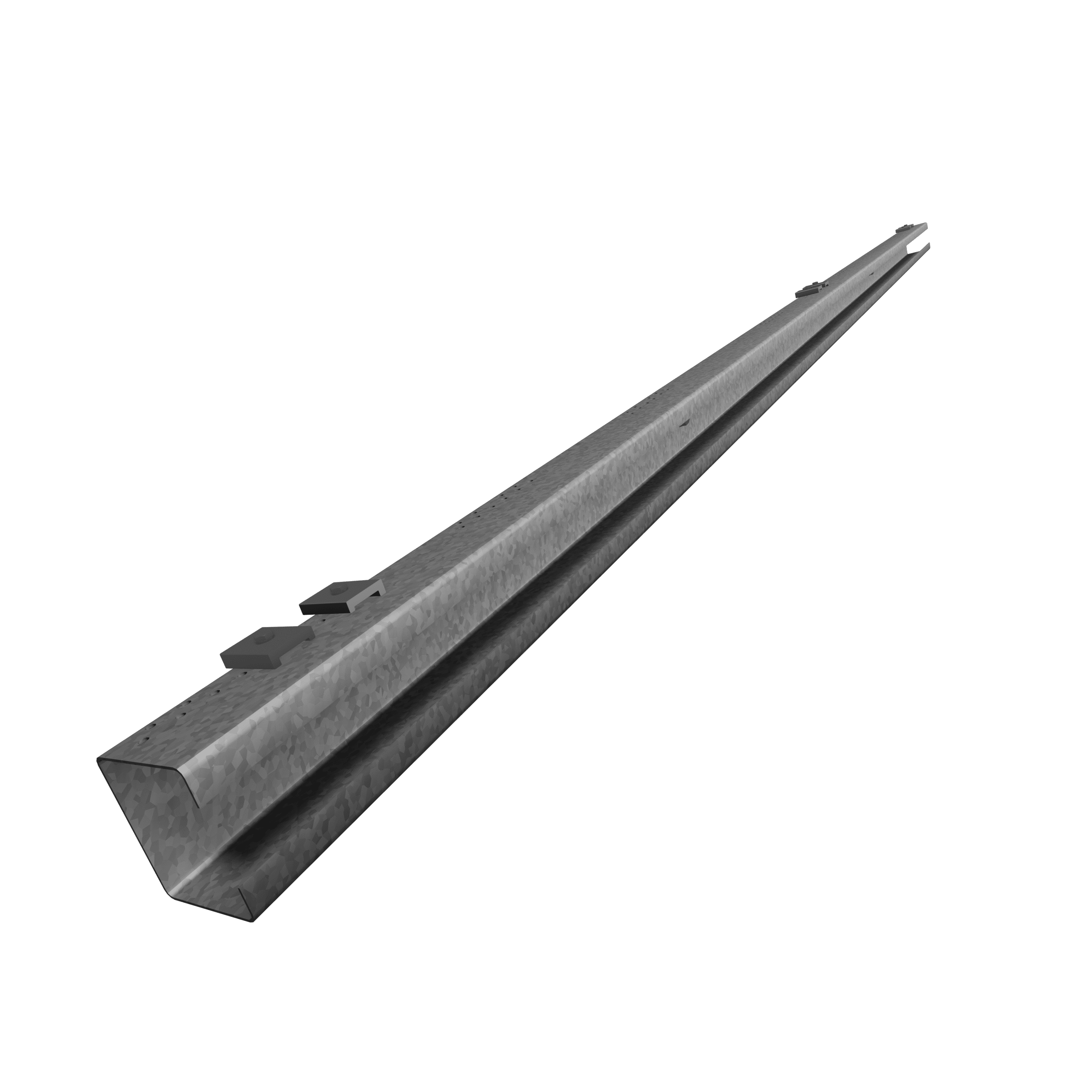

Top Chord

Attached C Pile to GFT Rails which support the module. These are horizontal structural beams that run along the top of the C-piles. The east-west rails are attached to them to support the solar panels.

Rails

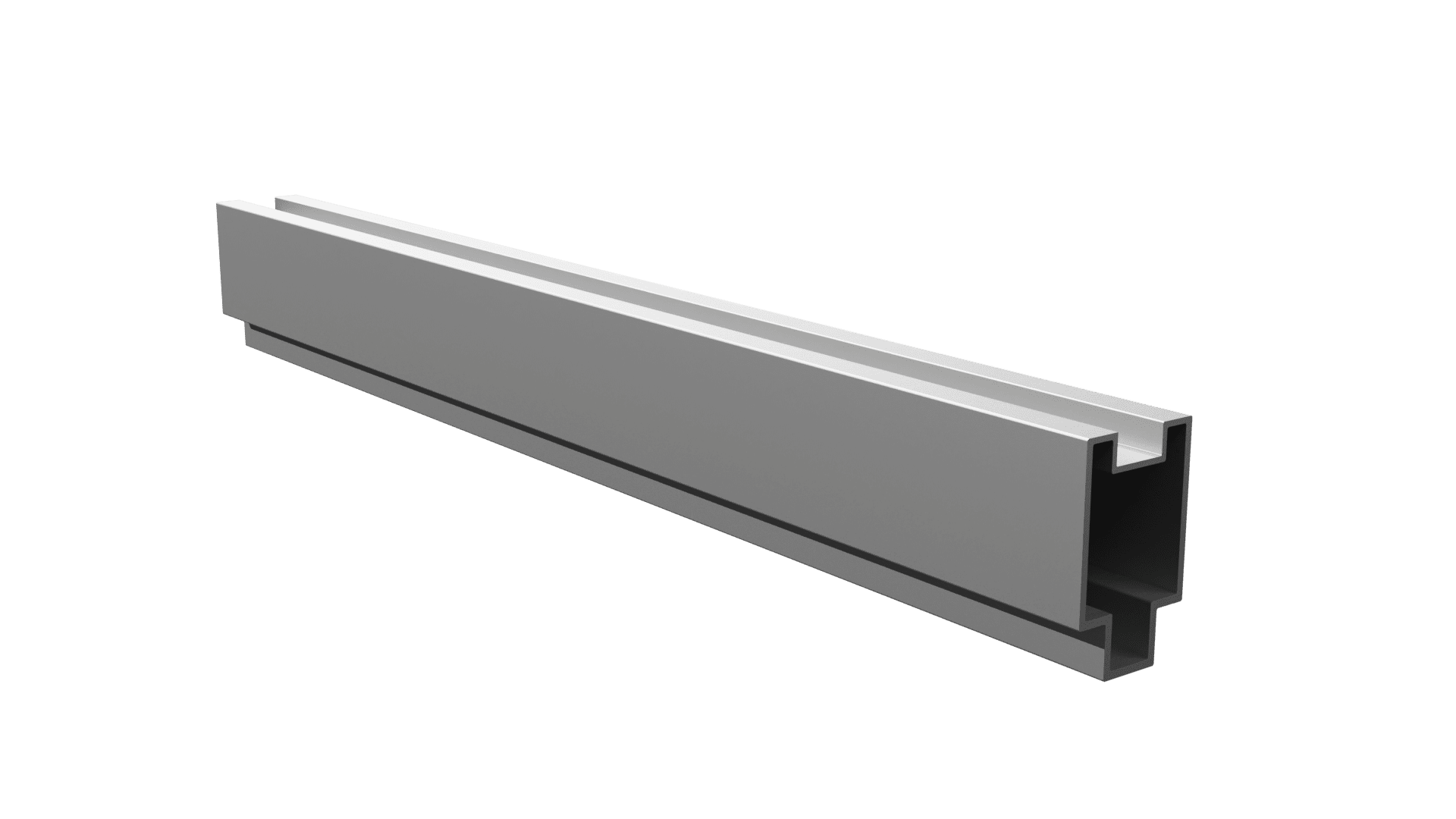

Splice

Connects 2 segments of GFT Rails.

Clamps

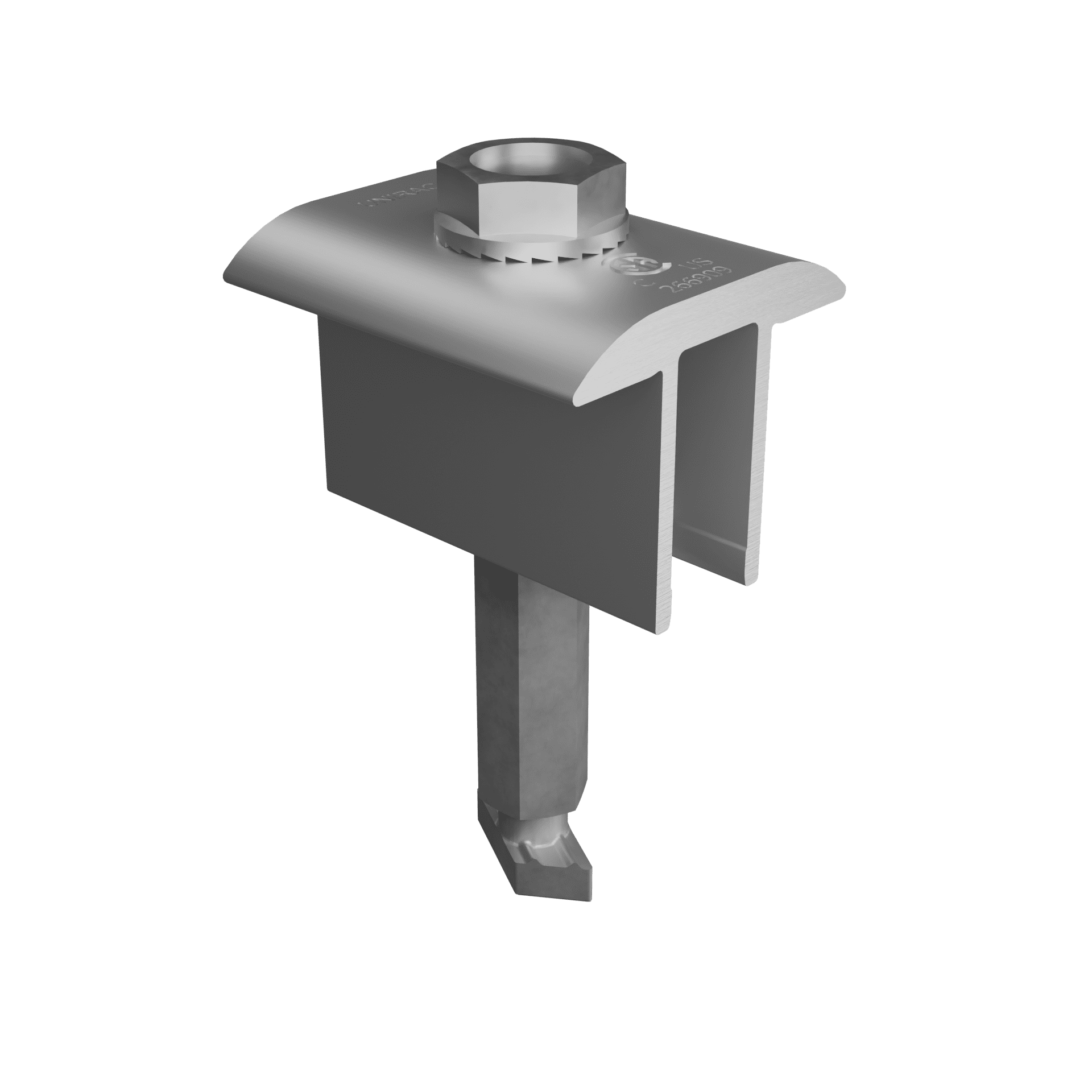

Mid Clamp – Universal AF

Offers ½” row spacing. 30mm – 46mm modules.

Perfect balance between aesthetics/module gaps & engineering benefits

Hexagonal hardware is designed to help align clamps with module frames for easier installation

Clamps

Mid Clamp – Standard Series

Offers ¼” row spacing.

The smallest module gap for great aesthetics and module density on the roof.

Low-cost, simple design.

SKUs are available for different module thicknesses between 30-51mm.

Clamps

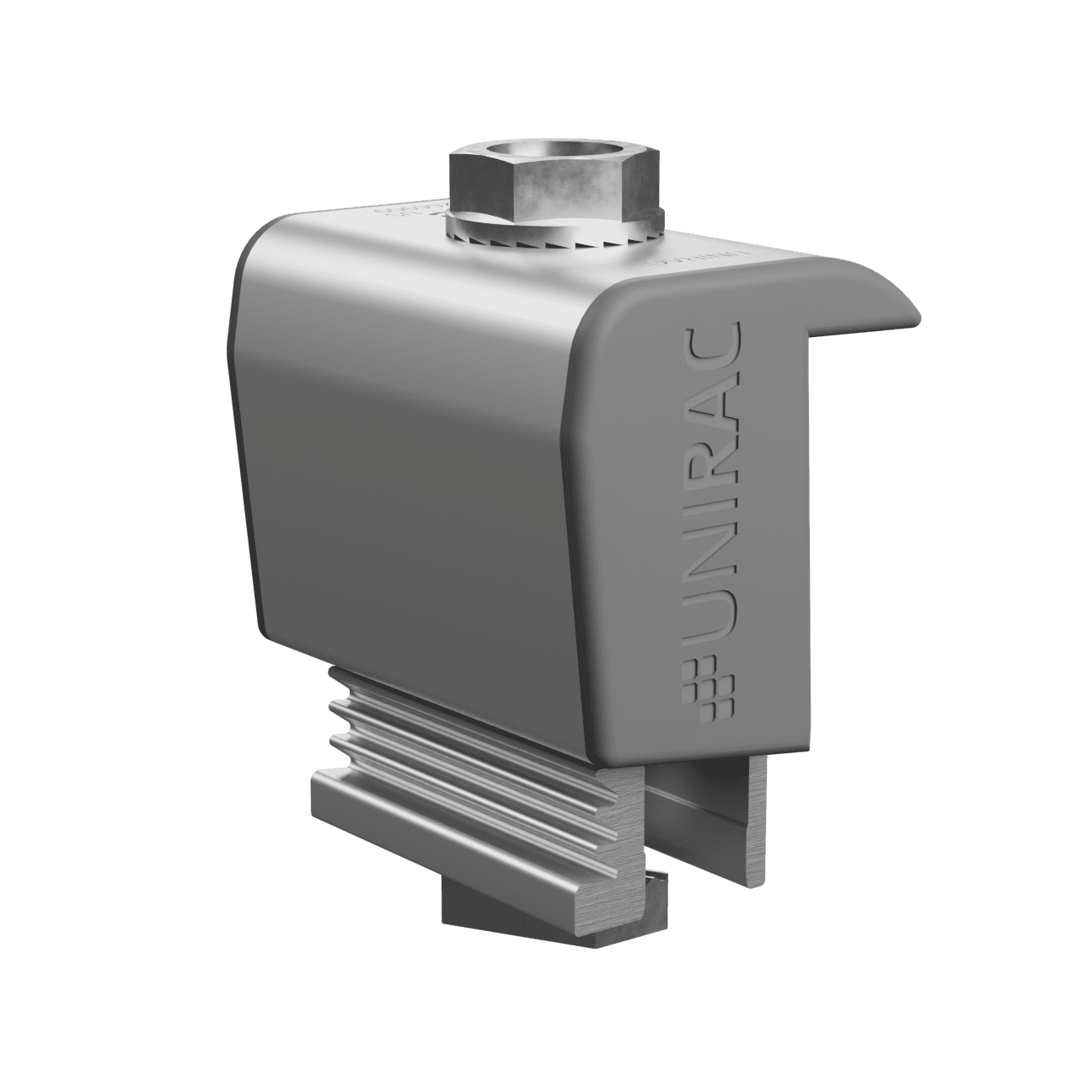

End Clamp – Universal AF

Provides an aesthetic end clamp along with a twist-and-lock design for quick engagement. Supports module frame heights from 30mm to 46mm. Extends ¾” from the module edge.

Clamps

End Clamp – Standard Series

Built-in washer keeps the clamp and bolt upright for easy assembly. Available in three sizes to fit module frame heights from 30mm to 51mm. Extends 1½” from the module edge.
