ECOFOOT® 5D

5-Degree South-Facing Ballasted Tilt Flat Roof System for Commercial Installations

Simple design. Higher output with ECOFOOT 5D.

OVERVIEW

ECOFOOT® 5D is a high-density 5° flat roof racking system built on the trusted ECOFOOT® modular platform. With just five simple components and a seamless six-step installation, ECOFOOT® 5D delivers more power than traditional 10° systems. Its preassembled parts, compact base design, and self-aligning layout make it the simplest way to maximize energy on tight or complex rooftops.

Installs on
Ballasted
Gravel
Membrane
Mineral Cap Tar

Key Features & Benefits

High Power Density

Delivers more power than 10° systems thanks to 9.9″ inter-row spacing and compact 7″x16.7″ base.

Pre-assembled Components

Includes clamp, base, wind deflector, ballast tray, and mid-support – no PV prep required.

Installer-Friendly Ballast Tray

Strong enough to walk on, installs easily with no awkward under-module access.

Optimized Wire Management

Clip into base and route wires between rows – fully protected and accessible under the tray.

Minimal Roof Impact

Lightweight, slip-sheet friendly, and ideal for flat roofs with surface variations.

Certification

Meets the UL 2703 standard.

Patented

This product may be protected by one or more U.S. Patents. Visit our patent page to learn more.

Domestically manufactured products available

System Components

To build a fully functional ECOFOOT® 2+ system, the following components are required.

Base

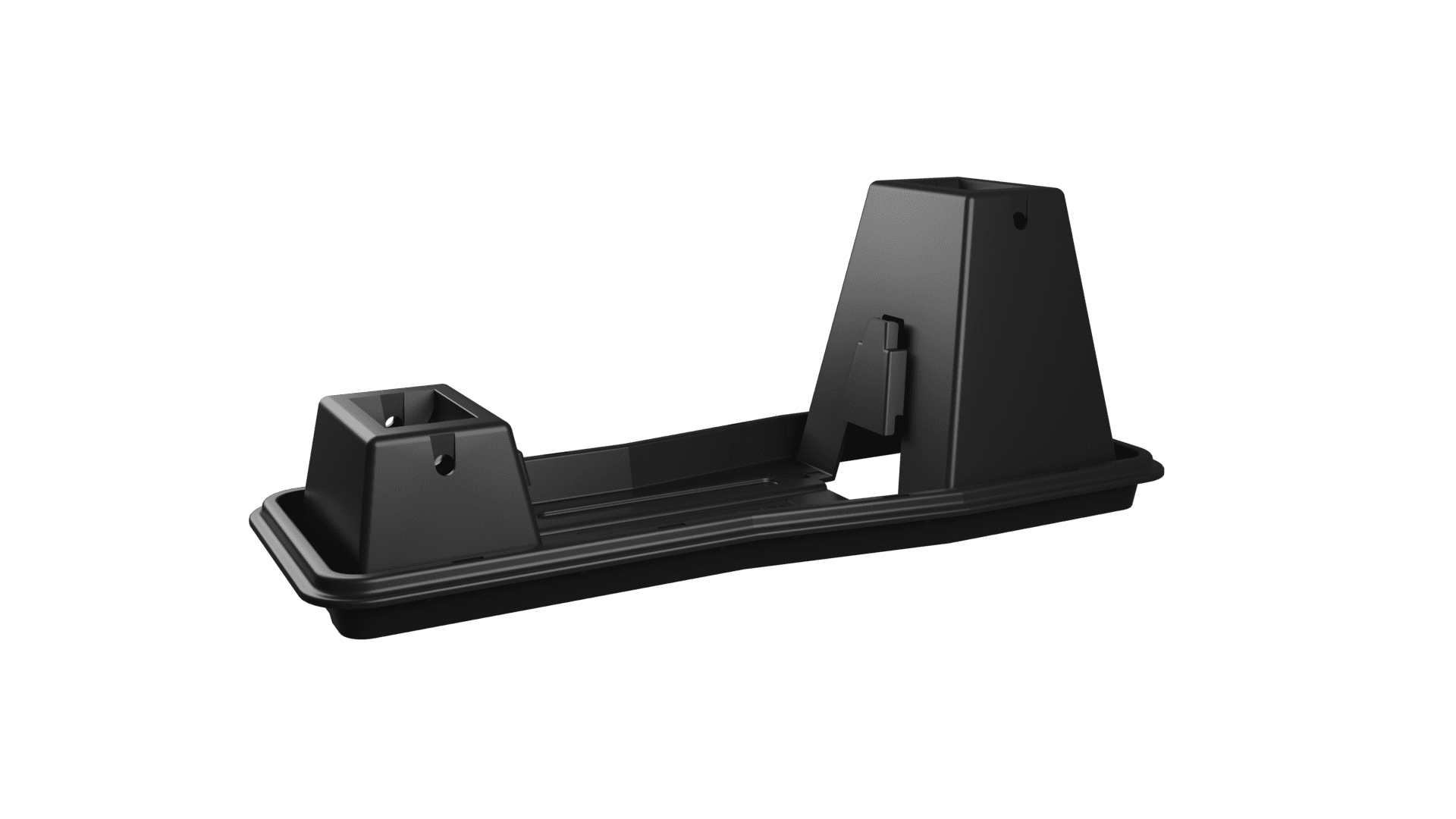

ECOFOOT® 5D Base

The ECOFOOT® 5D Base supports the north and south sides of the modules for secure, stable installations.

Clamps

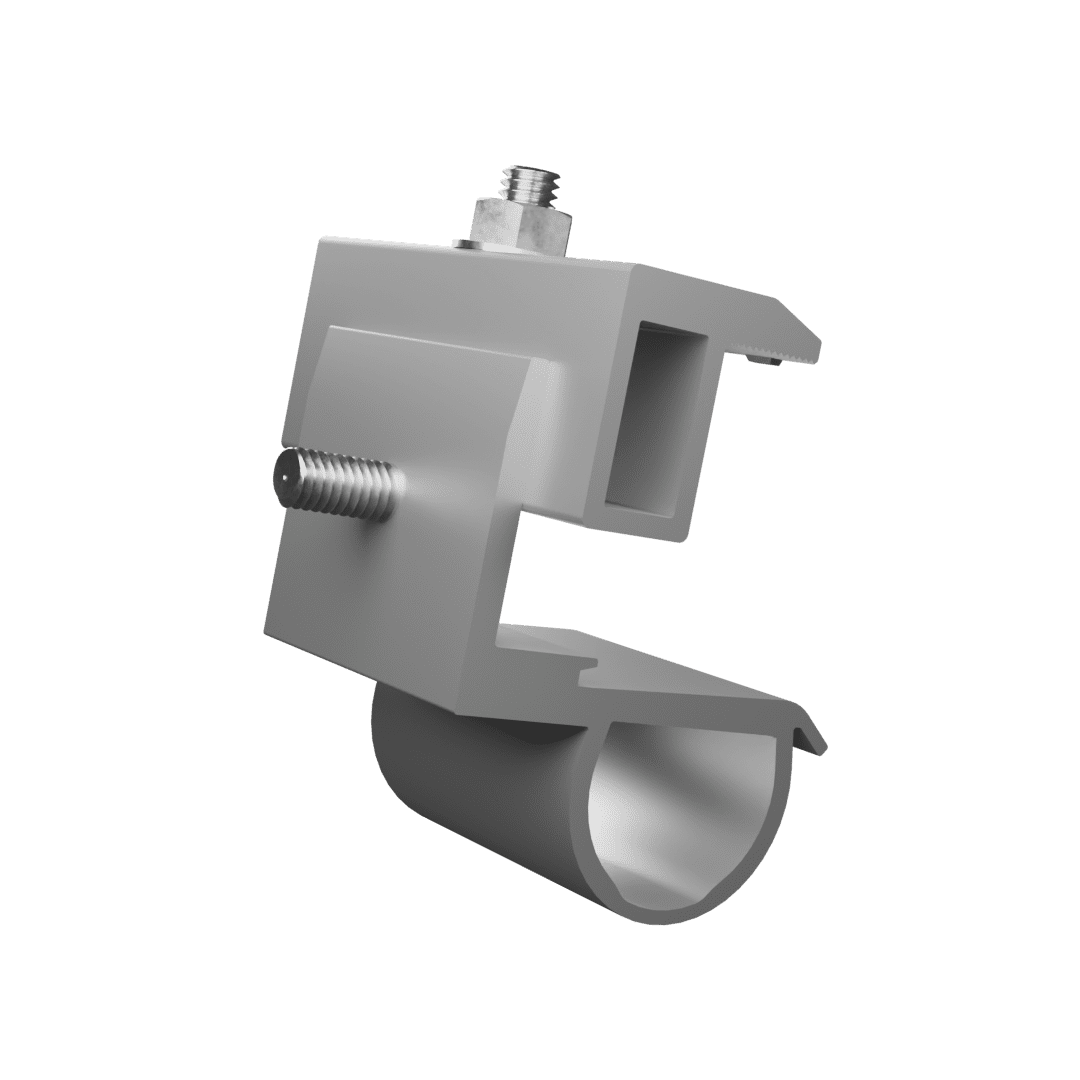

Universal Clamp

The Universal Clamp secures the north and south edges of the module to the base, providing a stable connection and consistent system alignment.

Clevis Pin
Clevis Pin

The Clevis Pin secures clamps to the base, locking components in place for a reliable connection.

Wind Deflector

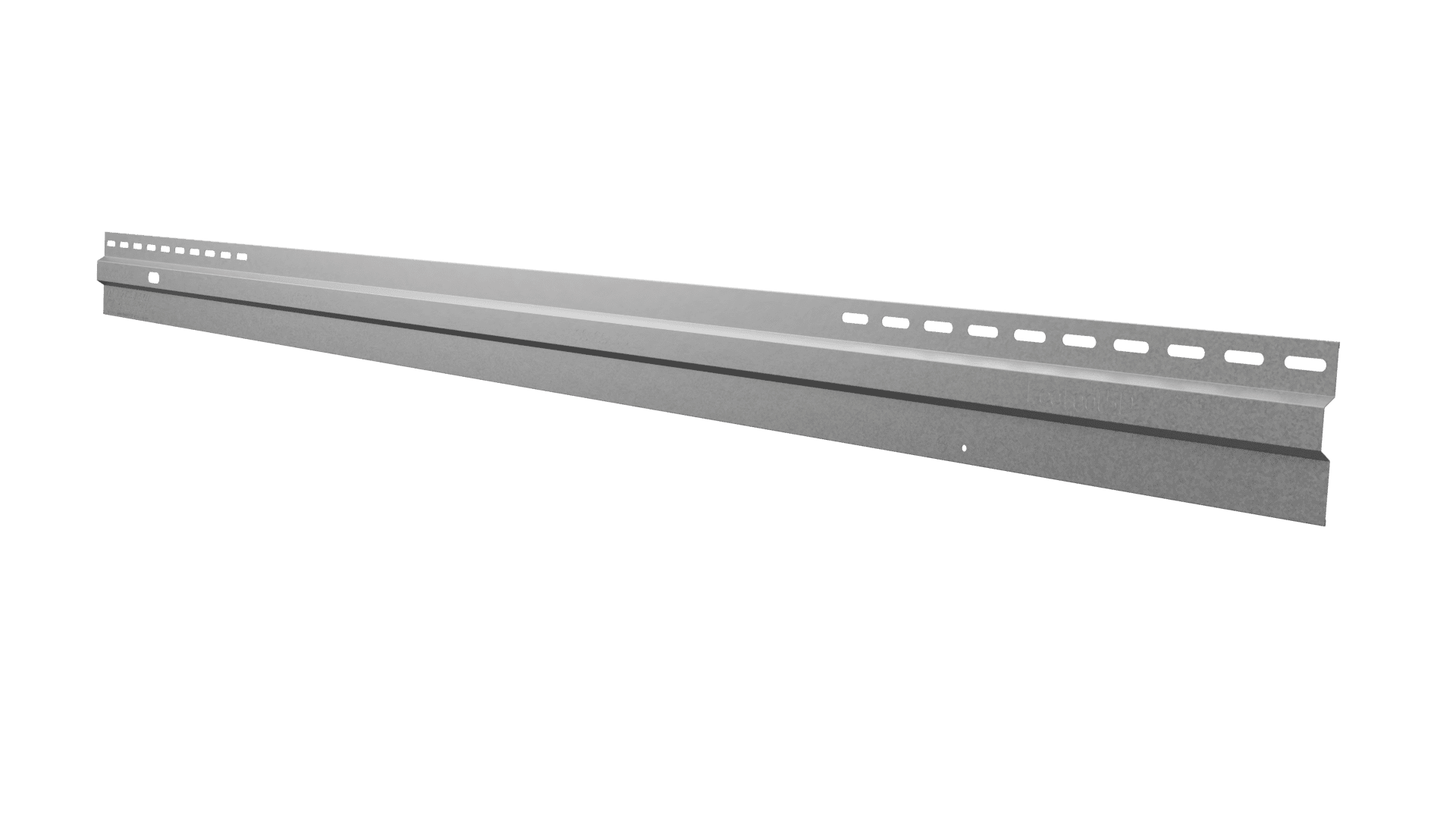

Deflector

The Deflector attaches to the high side of the base to reduce wind uplift forces, allowing for lower ballast requirements and improved system efficiency.

Wind Deflector
Ballast Tray

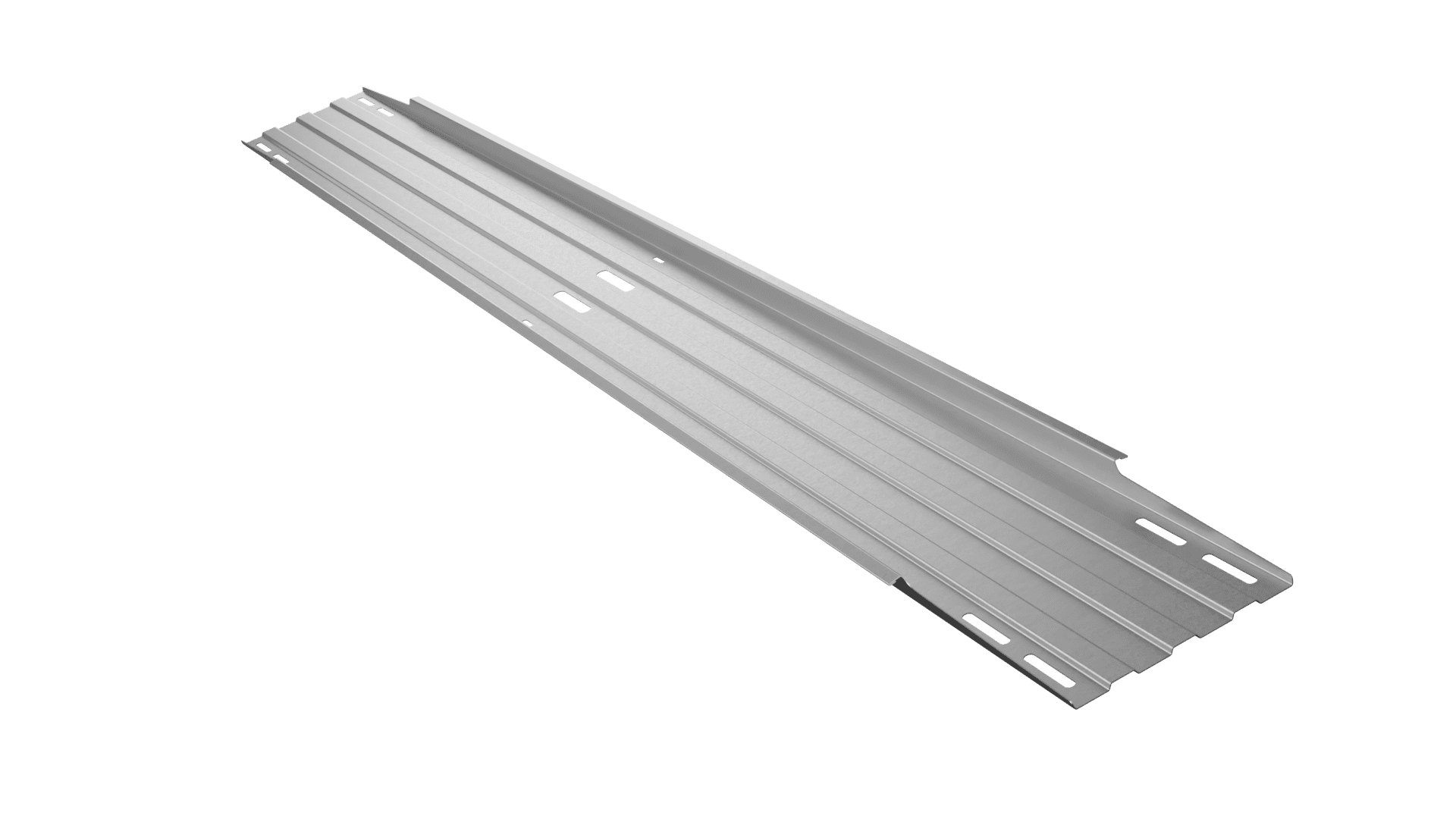

The Ballast Tray supports ballast blocks, distributing weight evenly and contributing to effective system load sharing for enhanced stability.

Mid Support

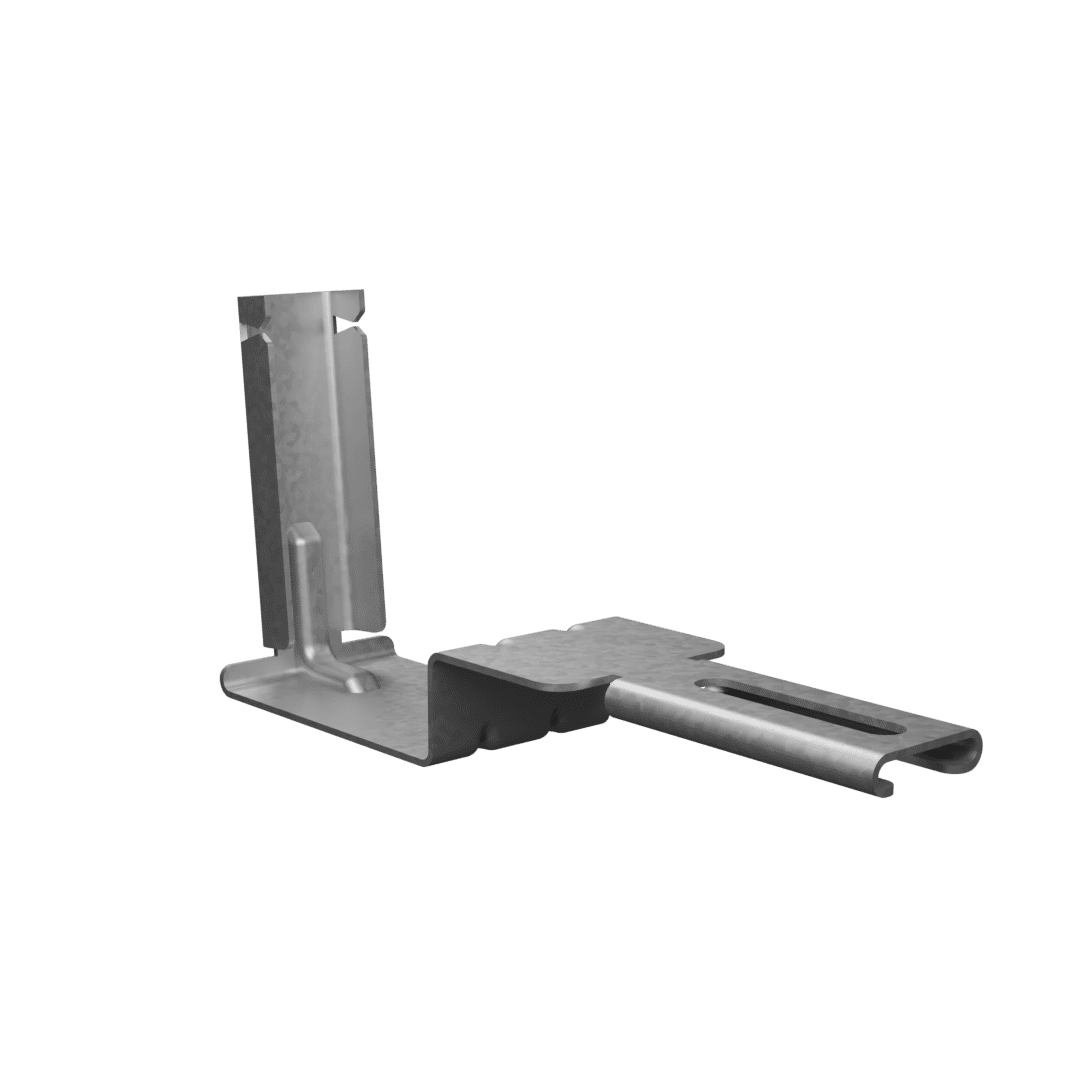

Mid Support Upper

The Mid Support Upper attaches to the return flange of the module’s north edge, adding reinforcement at the center of the frame for greater stability.

Mid Support

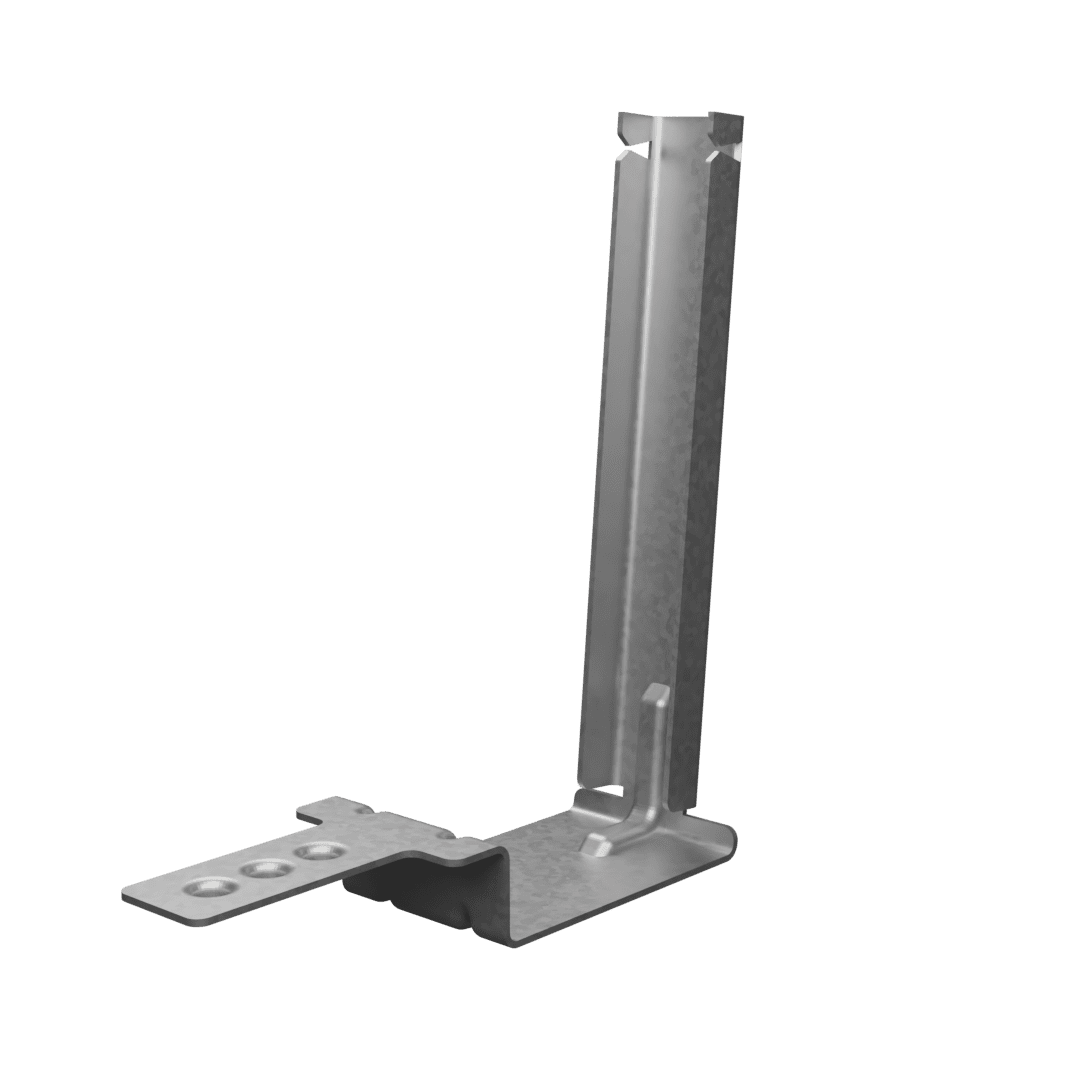

Mid Support Lower

The Mid Support Lower attaches to the return flange of the module’s south edge, reinforcing the center of the frame for added stability.

Attachments & ACCESSORIES

MLPE Mounts

Unirac’s MLPE Mounts offer a secure solution compliant with the UL 2703 standard for attaching microinverters and power optimizers directly to module frames….

Finishes
Mill
Learn More
Membrane
RAYTRAY™

Optimize your rooftop cable routing with RAYTRAY™—a modular, enclosed wire management system designed for commercial flat roof solar arrays. Built from…

Learn More
Gravel, Membrane, Mineral Cap Tar
ECOMOUNT® 1 & 2 INVERTER KITS

The EcoMount 1 Inverter Kit (holds two mounts) and EcoMount 2 Inverter Kit (holds three mounts) are universal clamp solutions engineered for secure, flexible…

Learn More
Membrane
FLASHLOC® RM

FLASHLOC® RM is Unirac’s most robust and versatile roof attachment for flat roof solar applications. Designed for speed, strength, and simplicity, this…

Learn More
