10-Degree, Grid-based Flat Roof System for Commercial Installations

Build it right the first time—with GRIDFLEX®

OVERVIEW

Built for the demands of modern flat-roof projects, GRIDFLEX® 10 combines structural integrity, installation speed, and long-term reliability—changing how the solar landscape is shaped, one roof at a time. Engineered to minimize ballast and attachments without compromising performance, GRIDFLEX 10 delivers streamlined installs, lower labor costs, and simplified maintenance access. Backed by a system-first design approach, everything solar pros need to build it right the first time.

Installs on
Ballasted
Gravel
Membrane
Mineral Cap Tar

Key Features & Benefits

Minimize Ballast & Attachments

Reduce labor hours and material costs while boosting system durability.

Precision Installation Tools

Rail-stamped measurement guides and labeled connections ensure fast, accurate setups.

Maximize Roof Utilization

Tighter row spacing options (10″, 13″, 17″) allow more modules per roof.

Integrated Wire Management

Tool-less components reduce clutter and streamline electrical BOS.

“Pop-the-Hood” Maintenance Access

One-step swing-up design enables easy access to individual modules—no part removal required.

Secure, Long-Lasting Connections

Torqueable, checkable clamps ensure system integrity and long-term performance.

Wind-Optimized Design

Deflective layout resists uplifting and stabilizes arrays in high-wind environments.

Green Zone Mounting

Promotes even load-sharing across modules, protecting your system investment.

Patented

This product is protected by one or more U.S. Patents. Visit our patent page in the footer to learn more.

Domestically manufactured products available

System Components

To build a fully functional GRIDFLEX® 10 system, the following components are required:

Rails
South Rail

The South Rail runs perpendicular to the Module Clamps, adding rigidity to the system and providing support for the south row of modules. Each rail features printed installation guides that simplify placement of South Clamps, row attachments, and overlap measurements for faster, more accurate installs.

Rails
Mid Rail

The Mid Rail provides support for field modules while increasing system stability. Each rail includes printed installation guides to ensure precise placement of South Clamps, North Stanchions, Ballast Rails, attachments, and overlap measurements, streamlining the installation process.

Rails
North rail

The North Rail supports the north row of modules and strengthens overall system stability. Printed installation guides on each rail provide clear direction for North Stanchions, Ballast Rails, and attachments, ensuring fast and accurate installs.

Rails
Ballast Rail

The Ballast Rail supports ballast blocks beneath the modules, distributing weight evenly and contributing to effective system load sharing for enhanced stability.

Rails
South Rail Stiffener

The South Rail Stiffener installs over the south-to-mid rail overlap, adding extra rigidity and reinforcing stability along the south row of modules.

CLAMPS
South Clamp

The South Clamp secures the south edge of the module to the base rails with a clevis pin connection, allowing the module to hinge open for easy access beneath the panel. Features a drop-down clamping method for quicker and simpler installations.

CLAMPS
North Stanchion

The North Stanchion secures the north edge of the module to the base rails, creating the 10° tilt. Its sliding clamp design locks modules in place while allowing access beneath the panel without removing components.

Wind Deflector
Wind Deflector

The Wind Deflector attaches to the North Stanchion to reduce wind uplift forces and enhance system load sharing for greater overall stability.

Wind Deflector
Wind Deflector Bracket

The Wind Deflector Bracket secures perimeter edge wind deflectors to the module’s return flange, ensuring a stable and reliable connection.

ACCESSORIES
Clip On Roof Pad

Snap-in, stackable roof pads grip rails with integrated side wings for a fast, stable, no-slip installations

ACCESSORIES
Stackable Roof Pad

Rubber Roof Pad nests to the Clip-On Roof Pad to level the system over roof undulations

ACCESSORIES
Ballast Rail Brace

The Ballast Rail Brace is added to the Ballast Rail configuration for added strength in higher block counts.

EBOSS
Wire Mgmt Clip

The Wire Management Clip mounts to the Ballast Rails to organize and secure east-west wiring for a clean, reliable installation.

EBOSS

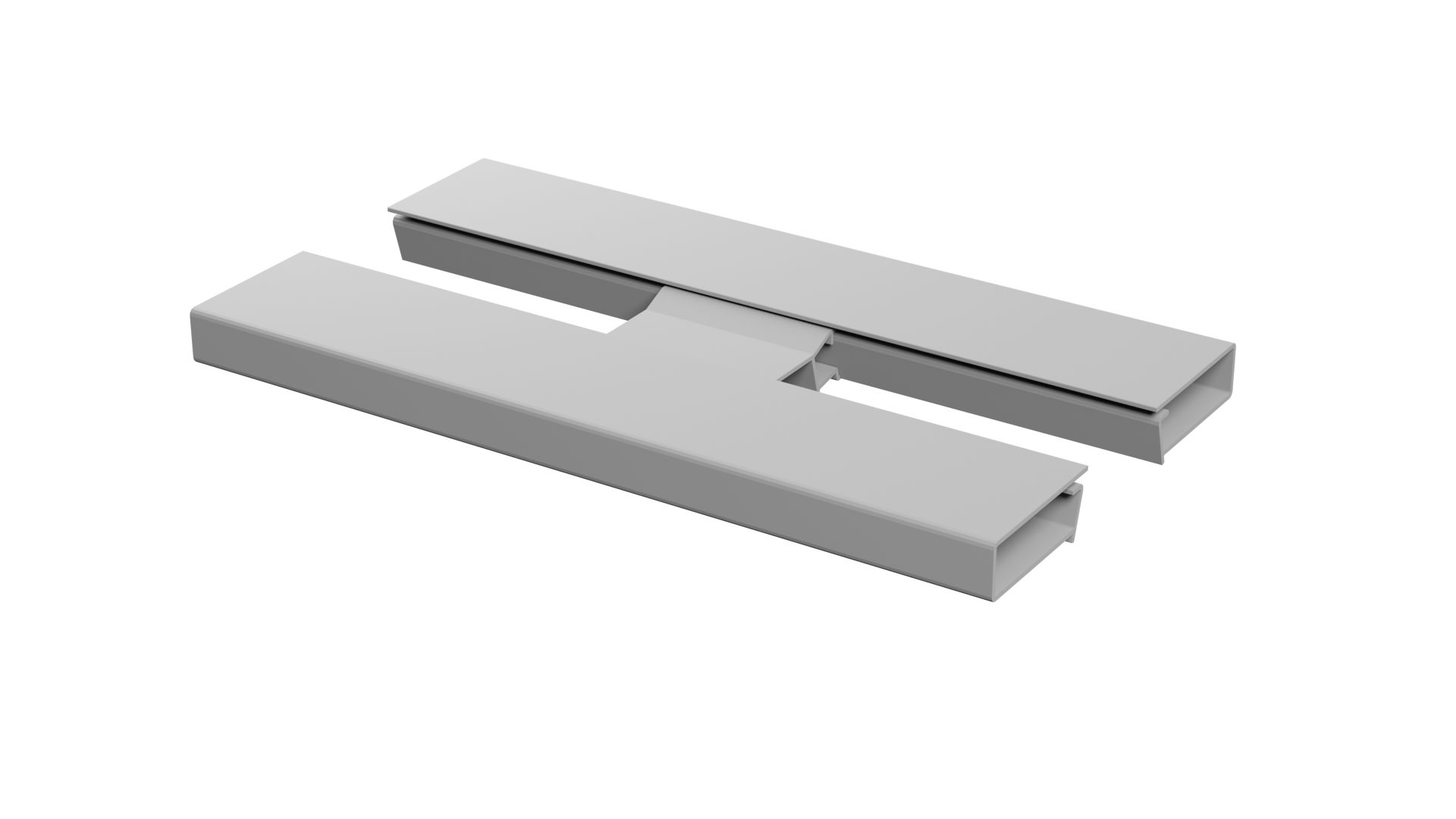

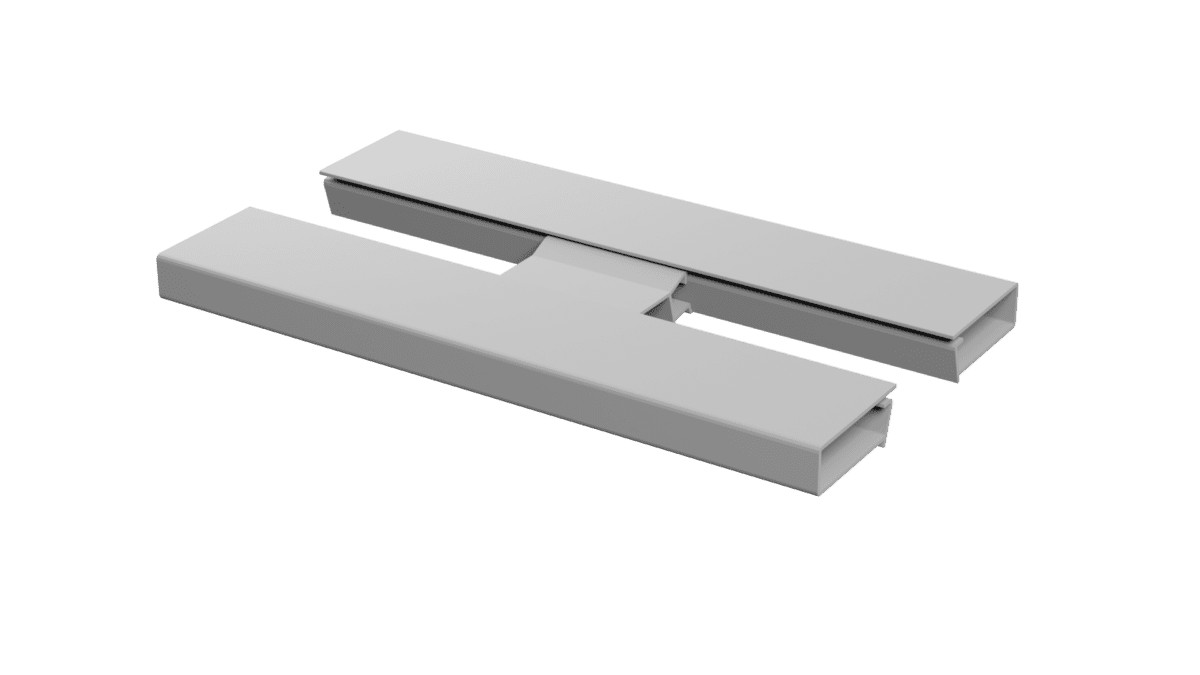

Homerun Cover

The Homerun Cover delivers tool-less wire management for north-south homerun runs, streamlining installation and keeping wiring organized.

Attachments & ACCESSORIES

MLPE Mounts

Unirac’s MLPE Mounts offer a secure solution compliant with the UL 2703 standard for attaching microinverters and power optimizers directly to module frames….
